Furuno

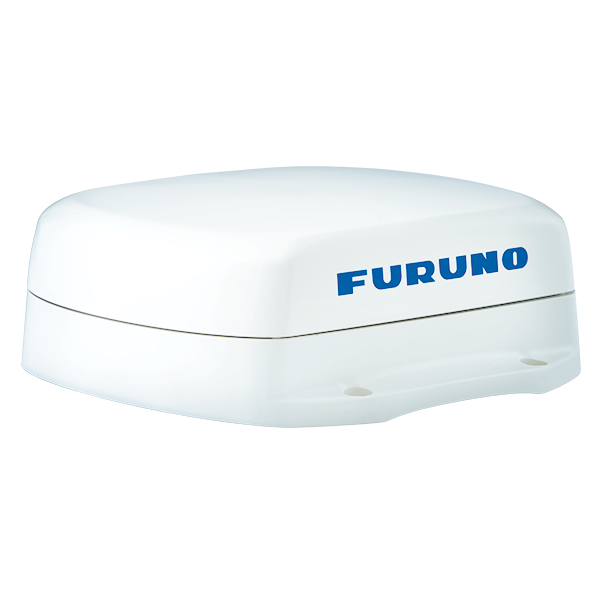

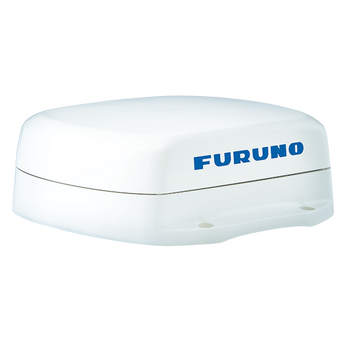

Furuno SCX-20 Satellite Compass (NMEA 2000)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Furuno SCX-20 is a compact satellite compass that delivers highly accurate heading, pitch, roll and heave data to the vessel's navigation, radar and sonar systems. Its lightweight antenna houses four separate GNSS receivers, and heading is calculated from any of six baselines drawn between them for dependable accuracy even when the boat is stationary or pitching heavily.
Multi-GNSS reception across GPS, GLONASS, Galileo, QZSS and SBAS keeps a solid fix in demanding conditions, while precise motion data stabilises fish finder and sonar presentations and keeps radar target trails smooth and true. Full NMEA 2000 certification means a single-cable, plug and play connection into an existing network.
With no moving parts and an IPx6 water-resistant antenna, the SCX-20 is a maintenance-free heading source suited to a wide range of recreational and commercial installations.
PRODUCT DETAILS
- Four-antenna satellite compass calculating heading from six baselines for reliable accuracy
- 1.0 degree rms heading accuracy (static), 0.5 degree rms (dynamic)
- Outputs heading, pitch, roll, heave, position, COG/SOG and rate of turn
- Multi-GNSS reception: GPS, GLONASS, Galileo, QZSS and SBAS
- Full NMEA 2000 certification for single-cable plug and play connection
- Lightweight 1.0 kg antenna with no moving parts for maintenance-free operation
- IPx6 water-resistant antenna unit
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Multi-GNSS satellite compass |
| GNSS systems | GPS, GLONASS, Galileo, QZSS, SBAS |
| Receiving frequency | 1575.42 MHz (GPS/Galileo/QZSS/SBAS), 1602.5625 MHz (GLONASS) |
Accuracy
| Heading accuracy | 1.0 degree rms (static), 0.5 degree rms (dynamic) |
| Roll / pitch accuracy | 1.0 degree rms (static), 0.5 degree rms (dynamic) |
| Speed accuracy | 0.02 knot |
| Position accuracy (GPS) | 5 m approx. (2 drms, HDOP < 4) |
Interface
| NMEA 2000 | 1 port, full NMEA 2000 certification |
Physical
| Antenna weight | 1.0 kg |
| Waterproofing | IPx6 (antenna unit) |
No videos available for this product.
No downloads available for this product.
