Garmin

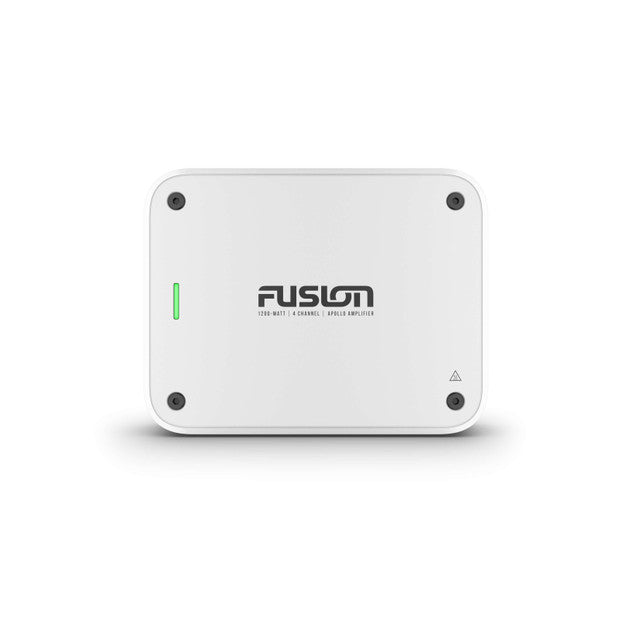

Fusion® Apollo™ Marine Amplifiers, 4 Channel Marine Amplifier (150-watt RMS per Channel)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
Amplify the moment with the Fusion Apollo 4-channel amplifier, designed specifically for use with your DSP-enabled Fusion marine stereo and Fusion speakers. This efficient Class-D amplifier drives up to four speakers with 150 W RMS per channel at 4 ohms, and can be bridged to two channels, giving your onboard system clean, powerful sound.
Designed to integrate with your compatible Fusion stereo system, the Apollo amplifier is quick to install and features a self-resetting electronic fuse, so there is no fuse to replace. A rugged, corrosion-resistant chassis and ignition-protected design make it well suited to the demands of the marine environment.
PRODUCT DETAILS
- Four-channel Class-D design delivering 150 W RMS per channel at 4 ohms
- Bridgeable to two 580 W RMS channels for extra power or a subwoofer
- Efficient design produces high output with less drain on your boat battery
- Self-resetting 85 A electronic fuse means there is no fuse to replace
- Purpose-built to pair with DSP-enabled Fusion marine stereos and speakers
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Amplifier
| Channels | 4 |
| Power per channel (RMS) at 4 Ω | 150 W x 4 @ 14.4 V, <1% THD |
| Power per channel (RMS) at 2 Ω | 290 W x 4 @ 14.4 V, <1% THD |
| Power bridged (RMS) at 4 Ω | 580 W x 2 |
| Total power | 1200 W |
| Class | Class-D |
| THD | <1% at rated power |
| Input sensitivity | 1.3 V RMS |
| Input impedance | 22 kΩ |
Electrical
| Supply voltage | 12 V DC (10.8 V - 16 V) |
| Fuse rating | 85 A self-resetting electronic fuse |
Installation
| Dimensions (W x D x H) | 235 x 180 x 45 mm |
| Marine rating | IPX2, Ignition Safety Protected |
General
| Weight | 2.2 kg |
| Warranty | 2 years |
