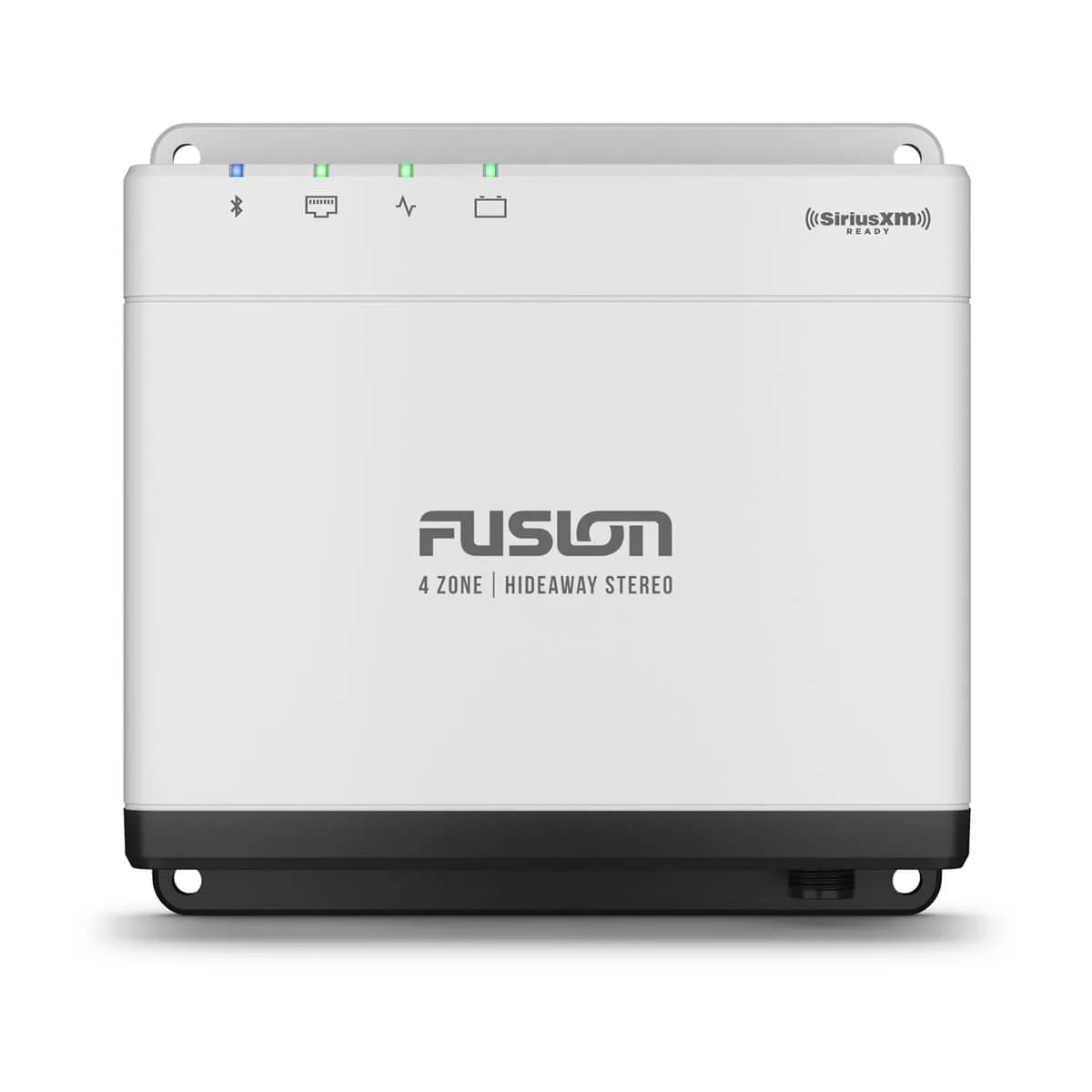

Fusion Apollo MS-WB675 Marine Hideaway Stereo
Manufacturer Part Number:
010-02346-50
Manufacturer Part Number:
010-02346-50
AMPLIFY THE MOMENT
The Apollo WB675 Marine Hideaway Stereo is compact in design but still offers superior audio quality in up to four separate audio zones that you can control.
Custom audio profiles for each zone on your boat deliver superior quality audio.
Audio streaming with Wi-Fi® technology provides high-quality audio with a faster data transfer rate1.
Experience seamless high-quality audio streaming from your music app via the AirPlay® 2 software feature1.
Enjoy the freedom of musical choice with PartyBus™-Network technology1.
Multi-Zone™ Technology gives you control of up to four separate audio zones.
Control your music from your compatible multifunction display (MFD), smart device or Garmin smartwatch.
General |
|
| Physical dimensions (HxWxD) | 130 x 130 x 56 mm (5.1″ x 5.1″ x 2.2″) |
| Weight | 475 g (16.75 oz) |
| Power input | 10.8—16 VDC |
| Operating temperature range | 32–122 degrees F (0–50 degrees C) |
| Current (max) | 15 A |
| NMEA 2000® network LEN | 1 (50 mA) |
| Bluetooth® technology wireless range | Up to 10 m (30') |
| ANT® connectivity wireless range | Up to 3 m (10') |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 150 mm (5.9″) |
Stereo features |
|
| Built-in amplifier | Class-D (2 Ohm stereo-stable) |
| Peak power | 280 watts |
| Rated power output (2 Ohm) | 43 watts RMS x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 Ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | Yes (with preconfigured DSP profiles) |
| PartyBus™-Network capabilities | Yes (wired) |
| Fusion-Link™ control | Yes (with MFD, smartphone and Garmin® watch) |
| Multi-Zone™ technology | 4 zones |
| Built-in Wi-Fi® technology | No |
| Bluetooth wireless technology | yes |
| ANT wireless technology | Yes |
| DAB+ ready | Yes (requires DAB100A antenna module) |
| Optical audio input | Yes |
| NRX remote compatibility | Yes |
| Software updates | Over-the-air software updates via the Fusion-Link app* USB |
| Warranty | 3 years |
Sources |
|
| Sources | AM / FM / Bluetooth / AirPlay® 2 from Apple®* / digital optical input / USB audio / iPhone® / iPod® / AUX x1 / universal plug-and-play* / MTP / DAB+ ready (available in Europe and Australia only) |
Connectivity |
|
| Auxiliary input | One RCA input (AUX) |
| Optical audio input | One digital optical input (SPDIF) port |
| Ethernet | One Ethernet port |
| NMEA 2000 | One NMEA 2000 port |
| USB 2.0 | One USB 2.0 port |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 zone amplified) |
| RCA Pre-out (left, right and subwoofer) | 4 zones (requires external amplification) |
| Line out | 4 (1 x L + R per zone, requires external amplification) |
| Subwoofer out | 4 (1 mono output per zone; requires external amplification) |
*Available when connected to a wireless network router or Apollo Series stereo network enabled with Wi-Fi® technology.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Wi-Fi is a registered trademark of the Wi-Fi Alliance.AirPlay, Apple, iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries.
