Fusion Apollo Zone Marine Amplifier 2 Channel
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

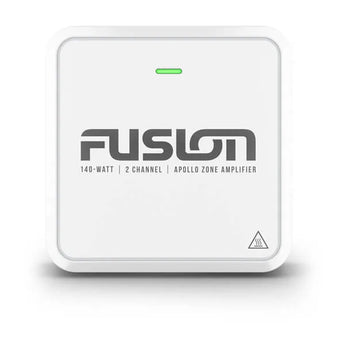

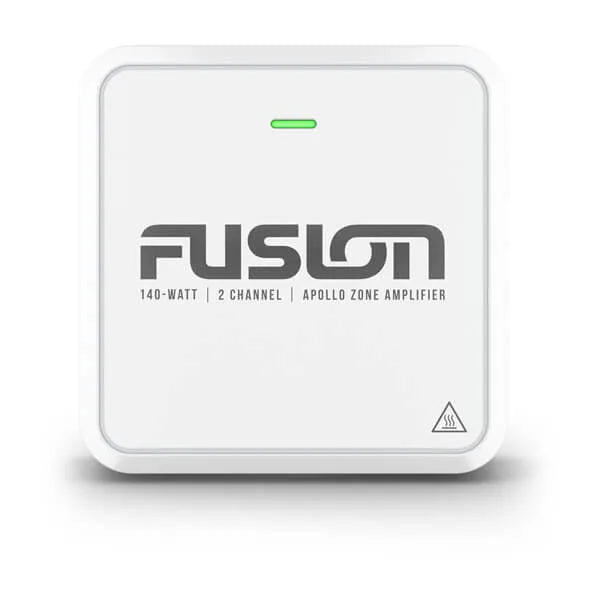

The Fusion Apollo Zone amplifier is a compact, efficient 2-channel Class-D amplifier designed to add a discreet additional audio zone to your DSP-enabled Fusion marine system. Delivering 20 W RMS per channel at 4 ohms, it is ideal for smaller cabin, galley or helm zones where a full-size amplifier would be more than required.
Its small footprint makes installation easy in tight spaces, and a wide 10.8 V to 32 V operating range lets it work on both 12 V and 24 V vessels. A self-resetting electronic fuse plus a rugged, IPX7-rated chassis make the Apollo Zone well suited to the demands of the marine environment.
PRODUCT DETAILS
- Compact 2-channel Class-D amplifier delivering 20 W RMS per channel at 4 ohms
- Ideal for adding a discreet extra audio zone to a Fusion system
- Wide 10.8 V to 32 V operating range suits both 12 V and 24 V vessels
- Self-resetting 16 A electronic fuse means there is no fuse to replace
- Small IPX7-rated chassis is easy to install in tight spaces on board
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Amplifier
| Channels | 2 |
| Power per channel (RMS) at 4 Ω | 20 W x 2 @ 14.4 V, <1% THD |
| Power per channel (RMS) at 2 Ω | 30 W x 2 @ 14.4 V, <1% THD |
| Total power | 140 W |
| Class | Class-D |
| THD | <1% at rated power |
| Input sensitivity | 0.45 V RMS |
| Input impedance | 9 kΩ |
Electrical
| Supply voltage | 12 V / 24 V DC (10.8 V - 32 V) |
| Fuse rating | 16 A self-resetting electronic fuse |
Installation
| Dimensions (W x D x H) | 100 x 100 x 40 mm |
| Marine rating | IPX7 |
General
| Weight | 460 g |
| Warranty | 2 years |
