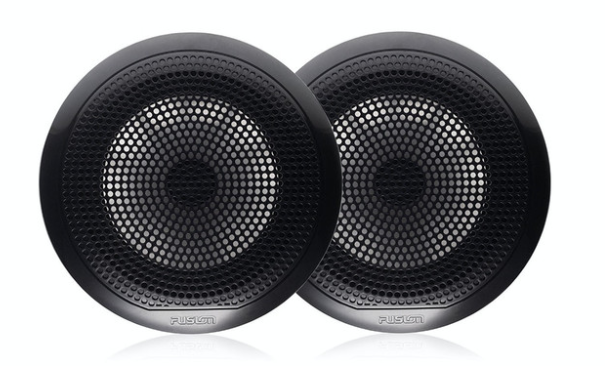

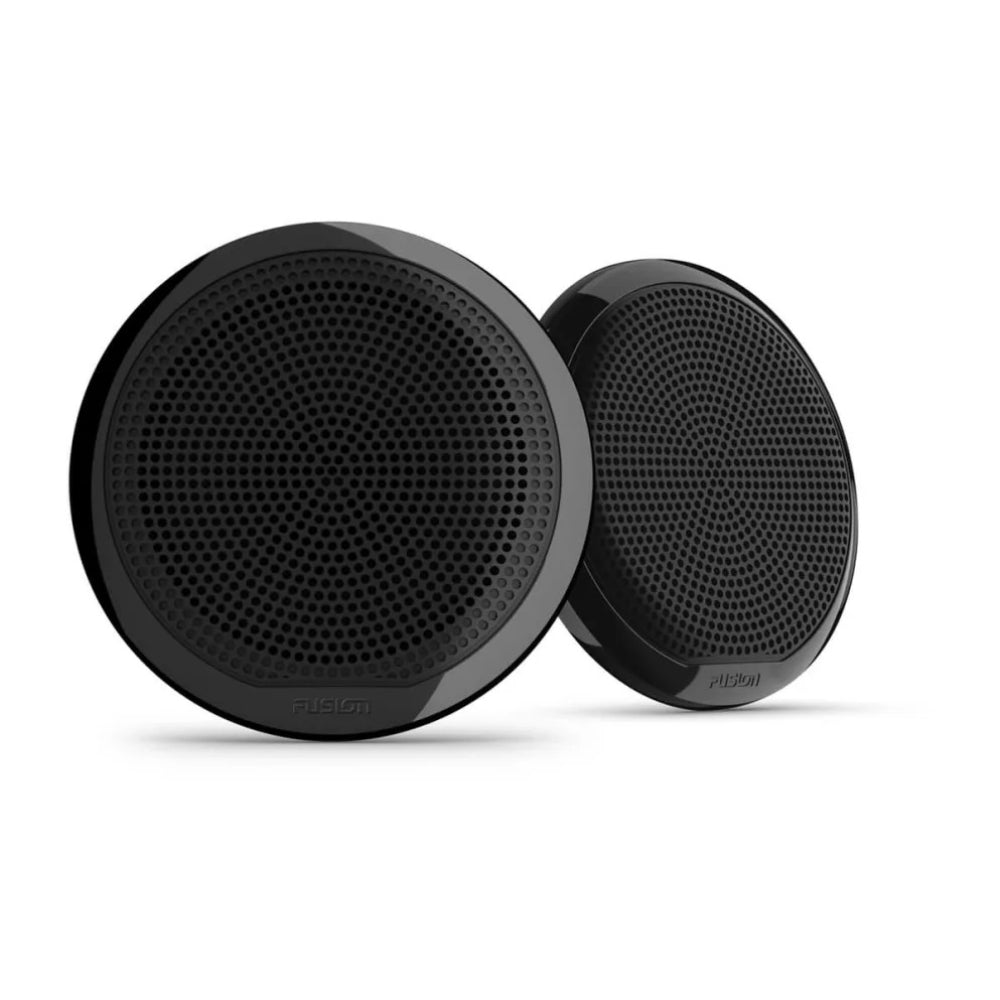

Fusion EL Series v2 6.5" Speaker Classic Black (no LED)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The redesigned Fusion EL Series v2 full-range speakers are engineered for quality audio reproduction on the water. A shallow-basket design gives you greater versatility in mounting, letting the speakers sit in thinner wall cavities than traditional units where installation depth is limited.
Built to withstand the elements, the EL Series meets industry standards for UV and salt fog protection and carries an IP65 weatherproof rating, protecting the front face from sun, salt, water and dust when correctly mounted. The range has also passed pressure and watertightness testing to ISO 12216 (D1.1 for Areas II, III and IV), so you can fit genuinely safe speakers on board with confidence.
PRODUCT DETAILS
- Shallow-basket design fits thinner wall cavities where mounting depth is limited
- 80 W peak power with a polypropylene cone for clean, clear audio
- IP65 rated and tested for UV and salt fog protection
- ISO 12216 (D1.1) pressure and watertightness certified for safe onboard fitment
- Classic Black grille suits both indoor and outdoor marine installations
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Audio
| Speaker size | 6.5 in |
| Power (peak/max) | 80 W |
| Impedance | 4 Ohm |
| Frequency response | 45 Hz - 16 kHz |
| Sensitivity | 88 dB (1 W / 1 m) |
| Speaker type | Full-range |
| Cone material | Polypropylene |
| Lighting | None |
Installation
| Mounting depth | 43 mm (1-11/16 in) |
| Cut-out diameter | 130 mm (5-1/8 in) |
| Overall diameter | 176 mm (6-15/16 in) |
| Marine rating | IP65 |
General
| Colour/finish | Classic Black |
| Sold as | Single |
| Warranty | 2 years |
