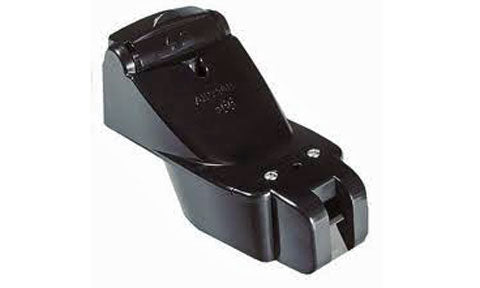

Garmin 200 50Khz Transom Mount Depth Speed and Temperature Transducer
Description
This Garmin transom-mount triducer, based on the Airmar P66, is the offshore choice that combines depth, speed and water temperature in a single plastic housing. Dual 50 and 200 kHz operation delivers deep-water reach at the low frequency together with detailed returns at the high frequency.
It is rated at 600 W RMS with a maximum depth of 800 to 1,200 ft, and mounts on transoms with a deadrise of 2 to 20 degrees. The 8-pin connector and 25 ft cable connect to compatible Garmin sounders; use adapter cable 010-11612-00 for 6-pin units.
The kit includes installation instructions; follow them carefully to avoid damaging your boat.
PRODUCT DETAILS
- Depth, speed and temperature in one offshore transom-mount housing
- Dual 50/200 kHz operation for deep reach and shallow detail
- 600 W RMS with depth readings of 800 to 1,200 ft
- 8-pin connector with a 25 ft cable
- Mounts on transom deadrise angles of 2 to 20 degrees
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Model | Airmar P66 Triducer |
| Mounting type | Transom mount |
| Functions | Depth, speed, temperature |
| Housing material | Plastic |
Sonar
| Operating frequency | 50/200 kHz (dual frequency) |
| Power | 600 W RMS |
| Beamwidth (LF/HF, -3 dB) | 45 degrees / 11 degrees |
| Maximum depth | 800 to 1,200 ft |
Physical
| Connector | 8-pin |
| Cable length | 25 ft |
| Supported transom angle | 2 to 20 degrees |
Compatibility
| Compatible sounders | Pairs with the Garmin GSD 24 digital sounder module and 8-pin GPSMAP sonar units. Use adapter cable 010-11612-00 when connecting to a 6-pin Garmin sounder. |
