Garmin

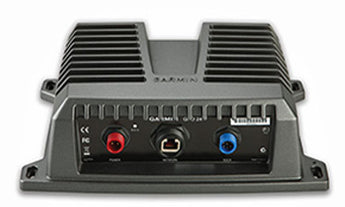

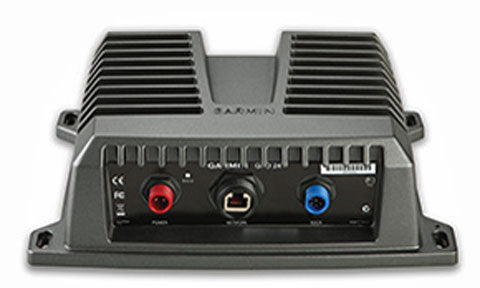

Garmin GSD 24 Advanced Digital Remote Sounder Black Box for Transducers up to 2kW
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
PRODUCT DETAILS
- Digital remote (black-box) network sounder for serious depth and fish-finding performance
- Selectable sounder power up to 2,000 W RMS depending on the transducer fitted
- Dual-frequency 50/200 kHz operation
- Reaches depths of up to 5,000 ft (1,512 m) in suitable conditions
- Connects over the Garmin Marine Network for display on compatible chartplotters
- Fully gasketed aluminium and steel housing rated to IPX7
No exploded diagram available for this product.
Garmin B164 Through Hull 1kW Transducer 12 Degree Tilted Element 8 pin
Garmin B164-12 Depth and Temperature 12 Deg 50 200 kHz Low Profile Transducer
Garmin B164 Through Hull 1kW Transducer 0 Degree Element 8 pin
Garmin B164 Through Hull 1kW Transducer 20 Degree Tilted Element 8 pin
Garmin R199 2kW In-Hull Depth Transducer with Fitting Kit 8 pin
Garmin B60 Through Hull Transducer with 12 Degree Tilted Element 8 pin
Garmin B258 Through Hull Depth and Temperature Transducer 8 pin
Garmin 77 200kHz Through Hull Plastic Transducer for 20 Degree Hull 8 pin
Garmin 77 200kHz Through Hull Bronze Transducer for 20 Degree Hull 8 pin
Garmin B260 1kW Through Hull Depth and Temperature Transducer 8 pin
Garmin P79 D Adjustable In-Hull Transducer 8 pin
Garmin Plastic 200 50Khz, 10 40deg Transom Mount Transducer with Depth & Temperature, 6-pin
Garmin B744V Long Stem Through Hull Depth Speed and Temperature 8 pin
Garmin SS60 Through Hull Transducer 12 Degree Tilted Element 8 pin
Garmin B117 Depth and Temperature Low Profile Through Hull Transducer 8 pin
Garmin M260 1kW In-Hull Depth Transducer with Fitting Kit 8 pin
Garmin B260 D/T Through Hull Stem Transducer
Garmin B744V Through Hull Depth Speed and Temperature Transducer 8 pin
Garmin SS270 Through Hull Widebeam Depth and Temperature Transducer 8 pin
Garmin 200 50Khz Transom Mount Depth and Temperature Transducer 8 pin
Garmin R99 2kW Through Hull Depth and Temperature Transducer 8 pin
Garmin SS60 Through Hull 1kW Transducer 12 Degree Tilted Element 8 pin
Garmin B60 Depth and Temperature Through Hull with 20 deg Tilted Element Transducer 8 pin
Garmin SS60 Through Hull 1kW Transducer 20 Degree Tilted Element 8 pin
Garmin B60 Through Hull Transducer with 20 Degree Tilted Element 8 Pin
Garmin 77 200kHz Through Hull Plastic Transducer for 12 Degree Hull 8 pin
Garmin SS60 Through Hull Transducer 0 Degree Element 8 pin
Garmin P319 Low Profile Through Hull Depth and Temperature Transducer 8 pin
Garmin SS60 Through Hull Transducer 20 Degree Tilted Element 8 pin
Garmin 200 50Khz Transom Mount Depth Speed and Temperature Transducer
Garmin 77 200kHz Transom Mount Transducer with Speed and Temperature 8 pin
Garmin B45 Narrow Stem Through Hull with Fairing Block 8 pin
No spares or accessories listed for this product.
No compatible products found.
Sonar/Sensor
| Sonar Type | Digital remote (black-box) network sounder module |
| Sounder Power (RMS) | 25 to 2,000 W RMS (dependent on transducer rating and depth) |
| Frequency | 50 / 200 kHz |
| Maximum Depth | 5,000 ft (1,512 m), dependent on transducer, water salinity, bottom type and other water conditions |
Connectivity
| Data Output | Garmin Marine Network |
Electrical
| Power Input | 10 to 35 V |
| Power Usage | 40 W maximum |
| Fuse | 7.5 A |
Physical
| Dimensions (L x W x H) | 204 x 283 x 81 mm (8 x 11.2 x 3.2 in) |
| Weight | 2.39 kg (5.27 lb) |
| Case Material | Fully gasketed aluminium and steel housing |
| Water Rating | IEC 529 IPX7 |
| Operating Temperature Range | -15 to 70 C (5 to 158 F) |
| Compass-Safe Distance | 40 cm (15.75 in) |
