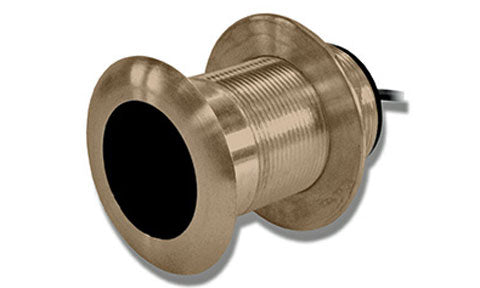

Garmin B60 Through Hull Transducer with 20 Degree Tilted Element 8 Pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin B60 is an entry-level bronze thru-hull transducer fitted with a 20 degree tilted element, aligning the acoustic beam vertically on hulls with a deadrise of 16 to 24 degrees without the need for a separate fairing block. The dual-beam 50/200 kHz element provides depth and water-temperature readings, with the wide 50 kHz beam covering more of the water column and the narrow 200 kHz beam delivering crisp bottom definition.
The bronze housing suits fibreglass and wooden hulls and must not be used on metal boats, where galvanic interaction between hull and housing can cause corrosion. It terminates in an 8-pin Garmin connector on a 39 ft cable; an adapter cable is required when connecting to a 6-pin Garmin sounder. Supplied with installation hardware and instructions; follow them carefully to avoid damaging the hull.
PRODUCT DETAILS
- Entry-level bronze thru-hull housing with 20 degree tilted element
- Accommodates 16 to 24 degree deadrise without a fairing
- Dual-beam 50/200 kHz operation for depth and water temperature
- 600 W power with 45/12 degree beamwidth and 800 to 1,200 ft depth capability
- For fibreglass and wooden hulls; not suitable for metal boats
- 8-pin Garmin connector on a 39 ft cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Airmar Model | B60 |
| Mounting Type | Thru-hull, tilted element (20 degree tilt), no fairing required |
| Housing Material | Bronze |
| Functions | Depth and Temperature |
Sonar
| Operating Frequency | 50 / 200 kHz (dual-beam HD-ID) |
| Power (RMS) | 600 W |
| Beamwidth | 45 degrees (50 kHz) / 12 degrees (200 kHz) |
| Maximum Depth | 800 to 1,200 ft |
Physical
| Supported Deadrise | 16 to 24 degrees |
| Connector | 8-pin |
| Cable Length | 39 ft |
| Recommended Hulls | Fibreglass and wood hulls (not for metal) |
Compatibility
| Compatible Sounders | Garmin STRIKER, ECHOMAP CHIRP, GPSMAP xsv series, GSD 24, GSD 25 and GSD 26 sounder modules. 6-pin Garmin sounders require adapter cable 010-11612-00. |
