Garmin

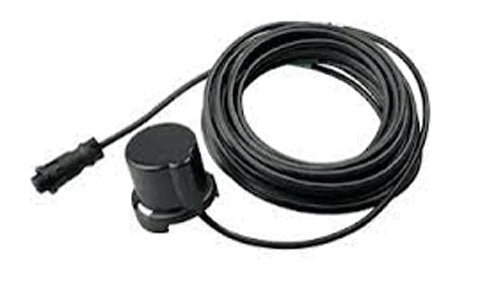

Garmin Plastic 200 50Khz, 10 40deg Transom Mount Transducer with Depth & Temperature, 6-pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin Dual Frequency transom-mount transducer is a plastic depth and temperature sensor that replaces the dual-frequency transducer included with many Garmin units. Dual 50 and 200 kHz operation gives you deep-water reach at the low frequency and crisp detail at the high frequency.
This is the 6-pin version, rated at 500 W RMS with a maximum depth of 1,500 ft. It mounts on transoms with a deadrise of 0 to 70 degrees and ships with a 30 ft cable. To connect it to an 8-pin Garmin sounder, fit adapter cable 010-11613-00; for newer units the 8-pin model 010-10272-10 is preferred.
The kit includes installation instructions; follow them carefully to avoid damaging your boat.
PRODUCT DETAILS
- Dual 50/200 kHz operation for deep reach and shallow detail
- 500 W RMS with depth readings to 1,500 ft
- Depth and temperature in a plastic transom-mount housing
- 6-pin connector with a 30 ft cable
- Mounts on transom deadrise angles of 0 to 70 degrees
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Model | Garmin Dual Frequency (6-pin) |
| Mounting type | Transom mount |
| Functions | Depth, temperature |
| Housing material | Plastic |
Sonar
| Operating frequency | 50/200 kHz (dual frequency) |
| Power | 500 W RMS |
| Beamwidth (LF/HF, -3 dB) | 40 degrees / 10 degrees |
| Maximum depth | 1,500 ft |
Physical
| Connector | 6-pin |
| Cable length | 30 ft |
| Supported transom angle | 0 to 70 degrees |
Compatibility
| Compatible sounders | Pairs with the Garmin GSD 24 digital sounder module and legacy 6-pin GPSMAP sonar units. Use adapter cable 010-11613-00 when connecting to an 8-pin Garmin sounder. The 8-pin transducer 010-10272-10 is preferred for newer units. |
