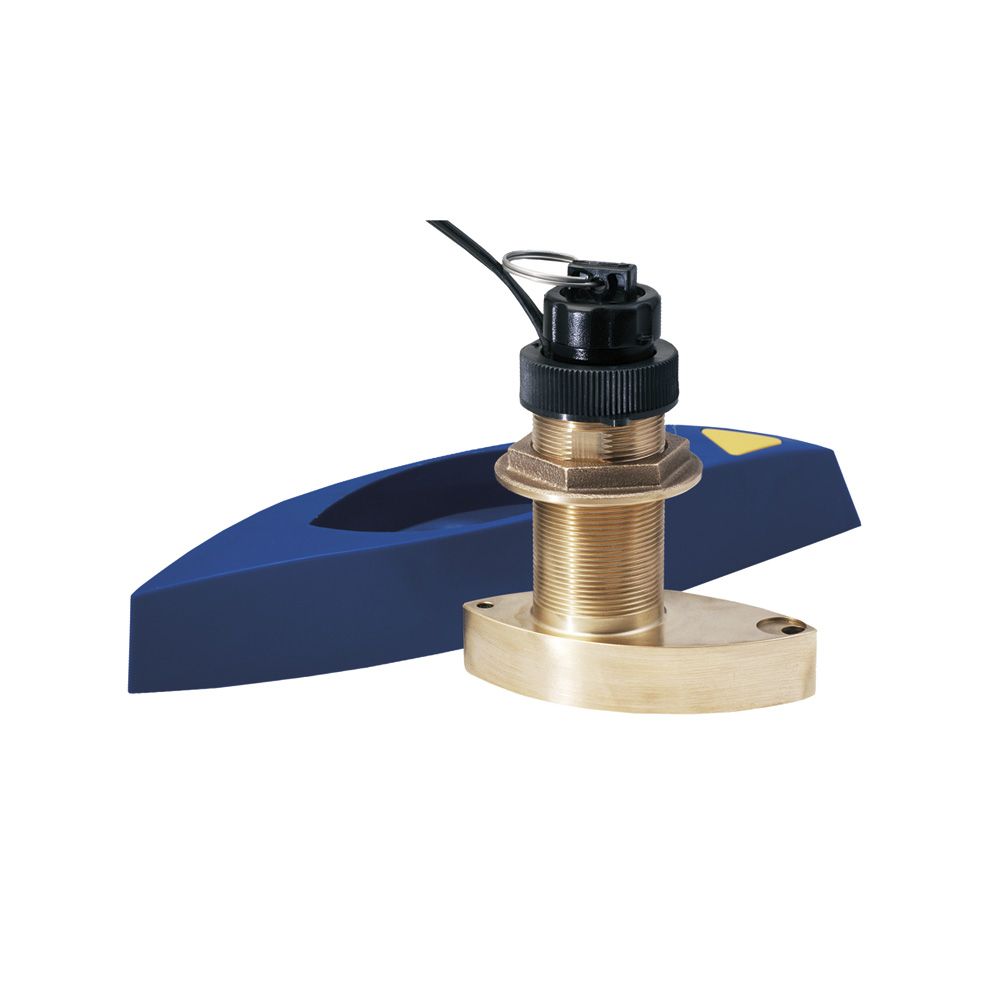

Garmin B744V Through Hull Depth Speed and Temperature Transducer 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin B744V is the only Airmar-based thru-hull transducer to combine depth, speed and water temperature in a single bronze housing, making it a tidy one-hole installation where a separate paddlewheel and depth transducer would otherwise be needed. The dual-beam 50/200 kHz element gives broad 50 kHz coverage for fish location and a narrow 200 kHz beam for bottom detail, while the paddlewheel reports through-water speed.
The transducer accommodates hull deadrise angles from 0 to 24 degrees and terminates in an 8-pin Garmin connector on a 39 ft cable; when used with a 6-pin Garmin sounder, adapter cable 010-11612-00 is required. Supplied with installation hardware and instructions, which should be followed carefully to avoid damaging the hull.
PRODUCT DETAILS
- Bronze thru-hull triducer combining depth, speed and temperature
- Single-hole installation replaces separate depth and speed transducers
- Dual-beam 50/200 kHz operation with 45/12 degree beamwidth
- 600 W power with 800 to 1,200 ft depth capability
- Suits hull deadrise angles of 0 to 24 degrees
- 8-pin Garmin connector on a 39 ft cable; adapter 010-11612-00 for 6-pin sounders
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Airmar Model | B744V |
| Mounting Type | Thru-hull triducer |
| Housing Material | Bronze |
| Functions | Depth, Speed and Temperature |
Sonar
| Operating Frequency | 50 / 200 kHz (dual-beam HD-ID) |
| Power (RMS) | 600 W |
| Beamwidth | 45 degrees (50 kHz) / 12 degrees (200 kHz) |
| Maximum Depth | 800 to 1,200 ft |
Physical
| Supported Deadrise | 0 to 24 degrees |
| Connector | 8-pin |
| Cable Length | 39 ft |
Compatibility
| Compatible Sounders | Garmin STRIKER, ECHOMAP CHIRP, GPSMAP xsv series, GSD 24, GSD 25 and GSD 26 sounder modules. 6-pin Garmin sounders require adapter cable 010-11612-00. |
