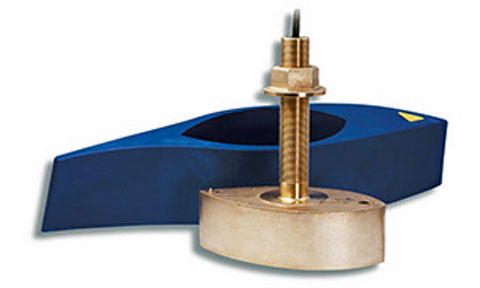

Garmin B260 1kW Through Hull Depth and Temperature Transducer 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin B260 is a popular narrow-beam 1 kW bronze thru-hull transducer prized for its deep-water performance. Its dual-frequency 50/200 kHz element delivers a wide 19 degree beam at 50 kHz for broad coverage and depth penetration, and a tight 6 degree beam at 200 kHz for crisp, high-resolution bottom and fish detail. Depth and water-temperature data are returned to compatible Garmin sounders.
Installed with its high-performance fairing, the B260 presents a truly vertical beam and performs well at speed. The transducer accommodates hull deadrise angles from 0 to 20 degrees and reads to between 1,800 and 2,500 ft. It terminates in an 8-pin Garmin connector on a 39 ft cable; a 6-pin Garmin sounder requires adapter cable 010-11612-00. Supplied with installation hardware and instructions.
PRODUCT DETAILS
- Popular narrow-beam 1 kW bronze thru-hull transducer
- Dual-frequency 50/200 kHz operation for depth and water temperature
- 19 degree beam at 50 kHz and 6 degree beam at 200 kHz
- Depth capability of 1,800 to 2,500 ft
- Supplied with a high-performance fairing for vertical-beam performance at speed
- 8-pin Garmin connector on a 39 ft cable; adapter 010-11612-00 for 6-pin sounders
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Airmar Model | B260 |
| Mounting Type | Thru-hull with high-performance fairing |
| Housing Material | Bronze |
| Functions | Depth and Temperature |
Sonar
| Operating Frequency | 50 / 200 kHz |
| Power (RMS) | 1 kW |
| Beamwidth | 19 degrees (50 kHz) / 6 degrees (200 kHz) |
| Maximum Depth | 1,800 to 2,500 ft |
Physical
| Supported Deadrise | 0 to 20 degrees |
| Connector | 8-pin |
| Cable Length | 39 ft |
Compatibility
| Compatible Sounders | Garmin GPSMAP xsv series with built-in 1 kW sonar, plus GSD 24, GSD 25 and GSD 26 sounder modules. 6-pin Garmin sounders require adapter cable 010-11612-00. |
