Garmin Airmar P79 NMEA2000 In Hull Mount Depth Smart Sensor
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

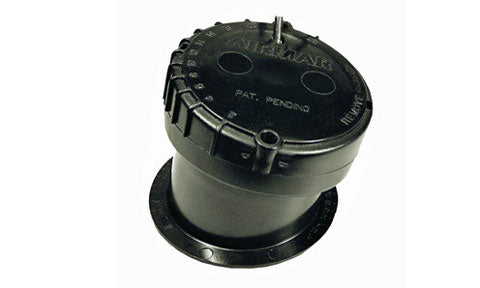

The P79 smart sensor is a plastic in-hull depth transducer with an adjustable deadrise cradle that makes installation easy. Rather than feeding a sounder module, it processes the sonar return internally and outputs depth straight onto a NMEA 2000 network, so it can be read by compatible Garmin chartplotters and instruments without a separate black-box sounder.
Operating at 235 kHz with 100 W of power, it reaches depths of 500 ft using a focused 6 degree beam and shoots its signal through the hull. The adjustable mount accommodates deadrise angles from 0 to 22 degrees. It is also known as the Airmar P79.
The P79 is intended for single-skin fibreglass up to 8 mm (5/8 in) thick and is not recommended for cored hulls. Any imperfections in the fibreglass layup can affect performance, so a thru-hull transducer is preferable where one can be fitted.
PRODUCT DETAILS
- In-hull depth smart sensor, outputs depth directly to NMEA 2000
- No sounder module required, connects to compatible chartplotters
- Operates at 235 kHz and 100 W with a 6 degree beam
- Depth capability of 500 ft, shoots through the hull
- Adjustable cradle suits 0 to 22 degree hull deadrise
- For single-skin fibreglass up to 8 mm thick, not for cored hulls
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Model | Airmar P79 Smart Sensor |
| Mounting type | In-hull (adjustable deadrise) |
| Functions | Depth |
| Interface | NMEA 2000 |
| Hull suitability | Single-skin fibreglass up to 8 mm (5/8 in) thick; not for cored hulls |
Sonar
| Operating frequency | 235 kHz |
| Power | 100 W |
| Beamwidth (-3dB) | 6 degrees |
| Maximum depth | 500 ft |
Physical
| Housing material | Plastic |
| Connector | NMEA 2000 |
| Supported deadrise | 0 to 22 degrees (adjustable) |
Compatibility
| Compatibility | Smart sensor that outputs depth directly to a NMEA 2000 network. Connects to compatible Garmin chartplotters and instruments via NMEA 2000; no sounder module required. |
