Garmin

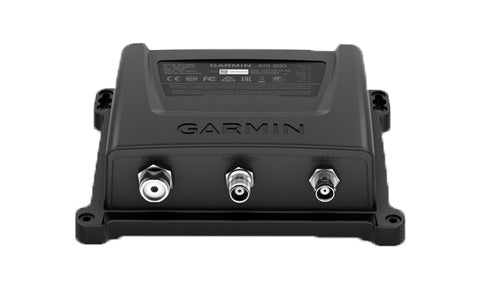

Garmin AIS 800
£1,120.00
/
Tax included.
Shipping calculated at checkout.
010-02087-00
The Garmin AIS 800 is a Class B SOTDMA transceiver that transmits your vessel position and receives nearby AIS targets. It features a built-in VHF antenna splitter and GPS, with NMEA 2000 connectivity to compatible chartplotters.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin AIS 800 is a Class B SOTDMA Automatic Identification System transceiver that broadcasts your vessel's position to other AIS-equipped craft while receiving their targets, helping you see and be seen for safer navigation. Its 5 W SOTDMA transmitter provides faster, prioritised position reporting compared with older CSTDMA Class B units, and a built-in GPS supplies position data with an optional external antenna connector for installations that need it.
A key feature is the internal VHF antenna splitter, which allows the AIS 800 to share a single VHF antenna with your VHF radio, simplifying installation and saving deck space. The transceiver connects to compatible Garmin chartplotters and multifunction displays over NMEA 2000, overlaying AIS targets on the chart. With a wide 12 to 24 Vdc power input, low current draw and a compact IPX7 water-rated housing, the AIS 800 suits a broad range of vessels.
PRODUCT DETAILS
- Class B SOTDMA AIS transceiver that transmits your vessel position and receives nearby AIS targets
- 5 W transmit power with SOTDMA for faster, prioritised position reporting
- Internal VHF antenna splitter lets the AIS and a VHF radio share a single antenna
- Built-in GPS with an optional external antenna connector
- NMEA 2000 connectivity for integration with compatible Garmin chartplotters and MFDs
- Wide 12 to 24 Vdc power input with low current draw
- Compact IPX7 water-rated black-box housing
- AIS 800 Class B transceiver
- Power and data cable
- NMEA 2000 drop cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
DSC/AIS
| AIS class | Class B SOTDMA transceiver (transmit and receive) |
| Transmit power | 5 W Class B SOTDMA (1 W remote switchable by authorities) |
| GPS | Built-in GPS, with optional external antenna connector |
| VHF antenna splitter | Internal VHF antenna splitter to share a single VHF antenna with a VHF radio |
Radio
| Wireless frequency | 162 MHz @ 38 dBm maximum |
Connectivity
| NMEA interfaces | NMEA 2000 |
| NMEA 2000 LEN @ 9 Vdc | 2 |
| Antenna port impedance | 50 ohm |
Physical
| Dimensions (W x H x D) | 175 x 142.3 x 54.5 mm (6.9 x 5.6 x 2.1 in.) |
| Weight | 414 g (0.9 lb.) |
| Compass-safe distance | 40 cm (15.75 in.) |
Electrical
| Power input | 12 to 24 Vdc, 2 A max. |
| Current draw | Less than 400 mA at 12 Vdc; less than 250 mA at 24 Vdc |
| Fuse | 5 A, 125 V fast-acting |
Environmental
| Operating temperature range | -15 to 55°C (5 to 131°F) |
| Storage temperature range | -20 to 75°C (-4 to 167°F) |
| Water rating | IEC 60529 IPX7 |
No videos available for this product.
Does the AIS 800 transmit as well as receive?
Yes. The AIS 800 is a Class B SOTDMA transceiver, so it transmits your own vessel position to other AIS-equipped craft and receives their AIS targets.
What is SOTDMA and why does it matter?
SOTDMA (Self-Organised Time Division Multiple Access) is the transmission scheme used by the AIS 800's 5 W transmitter. It provides faster and more consistent position reporting than the older CSTDMA method used by some Class B units.
Do I need a separate VHF antenna?
Not necessarily. The AIS 800 includes an internal VHF antenna splitter, allowing it to share a single VHF antenna with your VHF radio. It also has built-in GPS with an optional external antenna connector.
How does the AIS 800 connect to my chartplotter?
The AIS 800 connects over NMEA 2000, so received AIS targets can be overlaid on compatible Garmin chartplotters and multifunction displays.
What power supply does it need?
The AIS 800 accepts a wide 12 to 24 Vdc input (2 A max) and draws less than 400 mA at 12 Vdc or less than 250 mA at 24 Vdc.
