Garmin Class A Mechanical Linear Drive Unit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

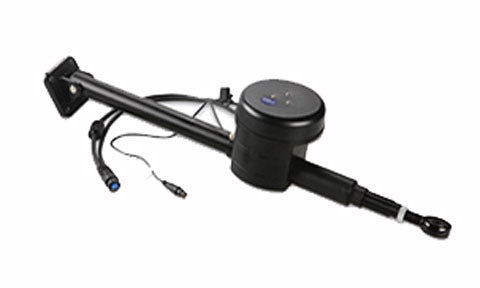

The Garmin Class A Mechanical Linear Drive Unit is a self-contained linear actuator that steers the rudder of a sailboat under the command of a Garmin GHP or Reactor autopilot. It connects directly to a quadrant or tiller arm and extends and retracts to move the rudder, drawing only a low average current during normal steering.
An integrated electromagnetic clutch engages when the autopilot is active and releases the moment it is disengaged, so the helmsman can take back manual control instantly. The drive must be fitted under deck in a dry location and protected with physical rudder end stops to avoid overtravel.
PRODUCT DETAILS
- Self-contained mechanical linear drive for sailboat steering
- Suited to larger sailing vessels up to 12,927 kg displacement
- Integrated clutch releases for immediate manual helm control
- Low average current draw of only 1 to 2 A in normal use
- Connects to a quadrant or tiller arm up to 20 mm thick
- Works with compatible Garmin GHP and Reactor autopilots
- Requires physical rudder end stops to protect the drive
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Drive type | Self-contained mechanical linear drive unit |
| Steering type | Mechanical or cable steering (sailboats) |
| Maximum vessel displacement | Up to 12,927 kg (sailboats) |
| Compatible autopilots | Garmin GHP and Reactor autopilot systems |
Drive
| Clutch | Integrated clutch; releases for manual steering when autopilot is disengaged |
| Stroke (end stop to end stop) | 293 mm (11.54 in.); 303 mm (11.93 in.) fully retracted to fully extended |
| Tiller arm compatibility | Quadrant or tiller arm up to 20 mm (0.79 in.) thick |
| Rudder feedback | Provided by the drive unit; no separate sensor required |
Electrical
| Average current | 1 to 2 A |
Physical
| Mounting | Under deck, motor pointing sideways; not water resistant |
| Motor height from mounting surface | 163.5 mm (6.44 in.) |
