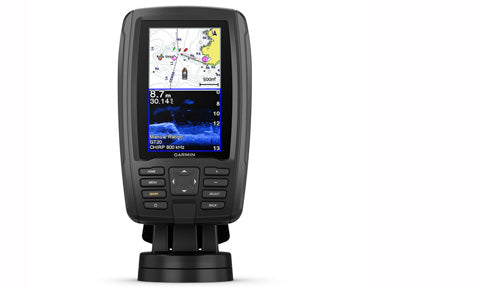

Garmin Echomap Plus 45cv Chartplotter No Transducer Bluechart G2
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin ECHOMAP Plus 45cv is a compact 4.3 inch keyed chartplotter and fishfinder that packs CHIRP traditional sonar and Garmin ClearVu scanning sonar into a small, easy to mount unit. The bright WQVGA display, preloaded BlueChart g2 cartography and built in Garmin Quickdraw Contours mapping let you chart your own waters in 0.3 m (1 ft) contours.
Built in Wi-Fi connects to the ActiveCaptain app for smart notifications, chart updates and OneChart downloads, while NMEA 0183 supports basic instrument connections. This unit is supplied without a transducer, so you can select the right transducer for your boat.
PRODUCT DETAILS
- 4.3 inch WQVGA colour display, 480 x 272 resolution
- CHIRP traditional sonar plus Garmin ClearVu scanning sonar
- Preloaded BlueChart g2 cartography
- Garmin Quickdraw Contours mapping creates custom maps
- Built in Wi-Fi with ActiveCaptain app support
- Supplied without transducer; IPX7 waterproof housing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 53.9 x 95.0 mm (2.1 x 3.7 in.), 4.3 in. diagonal |
| Display resolution | WQVGA, 480 x 272 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| Preloaded charts | BlueChart g2 |
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Sonar
| Built-in sonar | CHIRP traditional and Garmin ClearVu scanning sonar |
| Sonar frequencies | Traditional 50, 77, 83, 200 kHz; CHIRP ClearVu 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz (transducer dependent) |
Connectivity
| Networking | NMEA 0183, Wi-Fi (ActiveCaptain) |
| Memory card | 1 microSD card slot; 32 GB max. card size |
Physical
| Dimensions on mount (W x H x D) | 102.3 x 203.9 x 46 mm (4.0 x 8.0 x 1.8 in.) |
| Weight | 0.7 kg (1.6 lb.) |
| Material | Polycarbonate plastic |
| Compass-safe distance | 25 cm (9.8 in.) |
Electrical
| Input voltage | 9 to 18 Vdc |
| Max. power draw | 5 W |
| Fuse | 3 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
