Garmin GA38 GPS Antenna Passive Coax connection Garmin GA38 GPS Antenna Passive Coax connection
Garmin GA38 GPS Antenna Passive Coax connection

Garmin

Garmin GA38 GPS Antenna Passive Coax connection

£64.99
Tax included. Shipping calculated at checkout.
010-12017-00
The Garmin GA 38 is a GPS and GLONASS antenna that boosts the satellite signal to a compatible Garmin chartplotter, VHF or AIS. It connects via a standard BNC connector, ships with a 10 m cable and offers surface, pole or under-deck mounting.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Garmin GA 38 is an external GPS and GLONASS antenna that provides a stronger satellite signal to compatible Garmin equipment, including chartplotters, VHF radios and AIS units. By tracking both the GPS and GLONASS constellations, it improves positioning reliability, and its low-profile waterproof housing suits exposed installations.

The antenna connects using a standard BNC connector to the port labelled ANTENNA or EXT GPS on a compatible device, and a generous 10 m cable allows flexible routing around the vessel. Three supplied brackets cover pole, surface and under-deck mounting, so it can be sited wherever it has the clearest view of the sky. The fully gasketed, high-impact plastic-alloy housing is rated to IEC 60529 IPX7.

PRODUCT DETAILS

  • Provides a stronger GPS signal to a compatible Garmin chartplotter, VHF or AIS
  • Tracks both GPS and GLONASS satellites for reliable positioning
  • Connects via a standard BNC connector to the ANTENNA or EXT GPS port
  • Long 10 m (32 ft.) cable for flexible routing
  • Three mounting solutions: surface, pole and under-deck
  • Low-profile, fully gasketed plastic-alloy housing rated to IPX7

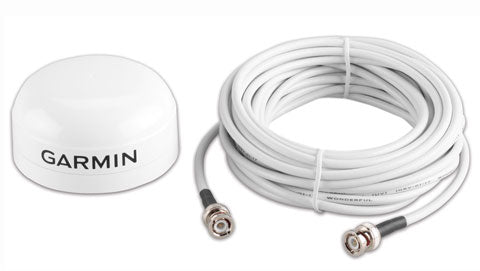

  • GA 38 GPS and GLONASS antenna
  • Antenna cable, 10 m (32 ft.)
  • Surface-mount bracket
  • Pole-mount adapter
  • Under-deck mounting bracket (white model)
  • Mounting hardware
  • Installation instructions

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

GNSS

Satellite systemsGPS and GLONASS

Connectivity

ConnectionBNC connector to the ANTENNA or EXT GPS port on a compatible Garmin chartplotter

Physical

Dimensions (diameter x height)91.6 x 49.5 mm (3 19/32 x 1 15/16 in.)
Weight201 g (7.1 oz.)
Cable length10 m (32 ft.)
Case materialFully gasketed, high-impact plastic alloy
Compass-safe distance114 mm (4.5 in.)
Mounting optionsSurface, pole (1 in. OD, 14 tpi) or under-deck (white model)

Environmental

Water ratingIEC 60529 IPX7
Operating temperature rangeWhite model: -30 to 80C (-22 to 176F); Black model: -30 to 70C (-22 to 158F)

General

Warranty2 years

No videos available for this product.

What is the GA 38 used for?
It is an external GPS and GLONASS antenna that provides a stronger satellite signal to a compatible Garmin chartplotter, VHF radio or AIS unit, improving positioning reliability.
How does it connect?
It uses a standard BNC connector that plugs into the port labelled ANTENNA or EXT GPS on a compatible Garmin device. A 10 m cable is supplied for flexible routing.
Which satellite systems does it receive?
The GA 38 receives both GPS and GLONASS satellites, which increases the number of usable satellites for more reliable positioning.
How can it be mounted?
Three brackets are included for surface, pole (1 in. OD) and under-deck mounting. Site it with a clear view of the sky, away from the engine, radar path and VHF antennas.
Is the GA 38 waterproof?
Yes. The low-profile, fully gasketed plastic-alloy housing is rated to IEC 60529 IPX7, withstanding incidental immersion in up to 1 m of water for 30 minutes.
