Garmin GCV 20 Sounderbox
£419.99
/
Tax included.
Shipping calculated at checkout.
010-02055-10

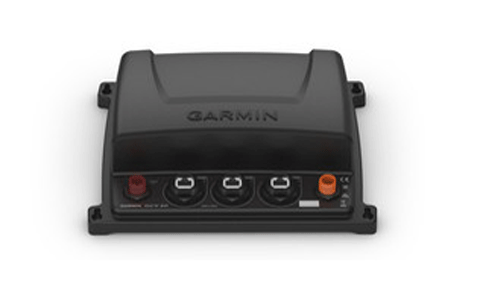

The Garmin GCV 20 is a networkable scanning sonar black box that adds Ultra High-Definition ClearVu and SideVu imaging to a compatible Garmin chartplotter system. With 500 W RMS power and CHIRP frequencies up to 1120 kHz, it reveals structure, cover and bottom detail with striking clarity. This module-only version connects over the Garmin Marine Network and pairs with a compatible Garmin Ultra HD scanning transducer (supplied separately).
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GCV 20 brings Garmin Ultra High-Definition ClearVu and Ultra High-Definition SideVu scanning sonar to your networked Garmin system. Operating across CHIRP frequencies of 260, 455, 820 and 1120 kHz, it produces near photographic images of submerged structure, fish-holding cover and the contour of the bottom, helping you read the water beneath and to each side of the boat with confidence. With 500 W RMS of transmit power it maintains clear returns out to useful working ranges. The GCV 20 connects over the Garmin Marine Network and includes three network ports, so scanning sonar can be shared across compatible chartplotters and the system expanded as needed. Its fully gasketed polycarbonate housing is rated to IPX7 for dependable service afloat. This is the module-only supply, intended for boats fitting a compatible Garmin Ultra HD scanning transducer separately.
PRODUCT DETAILS
- Networkable sonar black box delivering Garmin Ultra High-Definition ClearVu and Ultra High-Definition SideVu scanning sonar
- CHIRP frequencies of 260, 455, 820 and 1120 kHz for crisp, photo-like detail of structure, cover and bottom contours
- 500 W RMS transmit power for strong returns at range
- Connects over the Garmin Marine Network, sharing scanning sonar across compatible chartplotters on the boat
- Three Garmin Marine Network ports for easy expansion of your networked system
- Rugged, fully gasketed polycarbonate housing rated to IPX7 for reliable performance in the marine environment
- Module-only supply for boats fitting a compatible Garmin Ultra HD scanning transducer separately
- GCV 20 sonar black box
- Right-angle power cable
- Right-angle Ethernet (Garmin Marine Network) cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Sonar/Sensor
| Sonar Technology | Garmin Ultra High-Definition ClearVu and Ultra High-Definition SideVu |
| CHIRP Frequencies | 260 / 455 / 820 / 1120 kHz CHIRP |
| Transmit Power (RMS) | 500 W (dependent upon transducer rating and depth) |
| Maximum Depth - ClearVu | 260 kHz: 152 m (500 ft); 455 kHz: 91 m (300 ft); 820 kHz: 61 m (200 ft) |
| Maximum Range - SideVu | 260 kHz: 152 m (500 ft); 455 kHz: 91 m (300 ft); 820 kHz: 61 m (200 ft); 1120 kHz: 38 m (125 ft) |
Connectivity
| Data Output | Garmin Marine Network |
Electrical
| Power Input | 10 to 35 Vdc |
| Power Usage | 10.5 W maximum |
| Fuse | 4.0 A, mini 42 Vdc, fast-acting, blade type |
Physical
| Dimensions (W x H x D) | 192 x 251 x 66 mm (7.6 x 9.9 x 2.6 in) |
| Weight | 845 g (1.86 lb) |
| Case Material | Fully gasketed polycarbonate plastic |
| Water Rating | IEC 60529 IPX7 |
| Operating Temperature Range | -15 to 70 C (5 to 158 F) |
| Compass-Safe Distance | 260 mm (10.2 in) |
What scanning sonar does the GCV 20 provide?
The GCV 20 provides Garmin Ultra High-Definition ClearVu and Ultra High-Definition SideVu scanning sonar, operating across CHIRP frequencies of 260, 455, 820 and 1120 kHz for detailed images of structure, cover and the bottom.
How does the GCV 20 connect to my chartplotter?
The GCV 20 connects over the Garmin Marine Network. It has three Garmin Marine Network ports, allowing scanning sonar to be shared across compatible networked Garmin chartplotters.
Does the GCV 20 come with a transducer?
This version (010-02055-10) is supplied as the module only. It is intended for boats fitting a compatible Garmin Ultra HD scanning transducer separately.
What is the maximum depth and range of the GCV 20?
Using ClearVu, maximum depth is 152 m (500 ft) at 260 kHz, 91 m (300 ft) at 455 kHz and 61 m (200 ft) at 820 kHz. Using SideVu, maximum range to each side is 152 m (500 ft) at 260 kHz, 91 m (300 ft) at 455 kHz, 61 m (200 ft) at 820 kHz and 38 m (125 ft) at 1120 kHz. Figures depend on transducer, water salinity, bottom type and other water conditions.
What power supply does the GCV 20 need?
The GCV 20 accepts a power input of 10 to 35 Vdc and draws 10.5 W maximum. It uses a 4.0 A fast-acting blade-type fuse.
