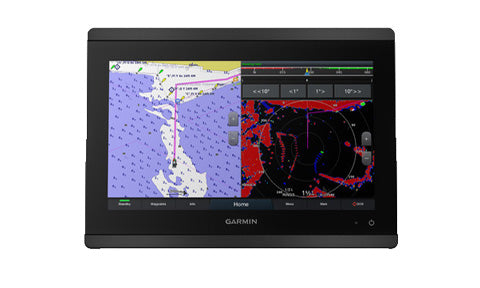

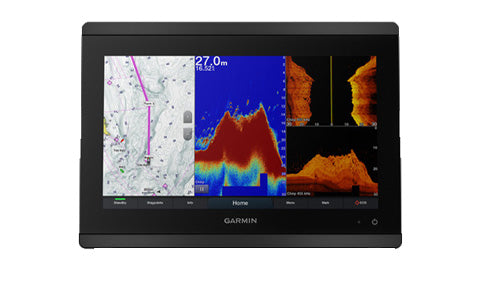

Garmin GPSMAP 8412xsv 12 Inch Chartplotter Fishfinder
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 8412xsv combines premium glass-helm performance with built-in sonar on an 11.6-inch screen, making it a strong choice for sport fishermen, cruisers and sailors. The full HD IPS touchscreen offers wide viewing angles, superior clarity and sunlight readability, even through polarised sunglasses, while the maximum-glass design flat mounts edge-to-edge or flush with a low profile.
Built-in sonar covers dual-channel 1 kW traditional CHIRP, CHIRP ClearVu and CHIRP SideVu scanning, plus Ultra High-Definition scanning sonar, with no black box required, and the unit supports the full Panoptix all-seeing sonar line (transducers sold separately). Wi-Fi, ANT and NMEA 2000 connect the 8412xsv to the Garmin Marine Network for sharing radar, sonar, cameras and instruments across helms, while OneHelm compatibility brings supported third-party systems to the touchscreen. The rugged housing carries an IPX7 water rating.
PRODUCT DETAILS
- 11.6-inch full HD IPS touchscreen (1920 x 1080) with wide viewing angles and sunlight readability
- Built-in dual-channel 1 kW traditional CHIRP, CHIRP ClearVu and CHIRP SideVu sonar (no black box required)
- Built-in Ultra High-Definition scanning sonar support and full Panoptix transducer compatibility
- Maximum-glass design for edge-to-edge flat mounting or low-profile flush mounting
- Networked glass-helm MFD with Wi-Fi, ANT, NMEA 2000 and the Garmin Marine Network
- OneHelm compatible for integrated control of supported third-party onboard systems
- IPX7 waterproof rating with dual microSD card slots (32 GB max)
- GPSMAP 8412xsv multifunction display
- Flush mount kit and gasket
- Bail mount and knobs
- Power cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 257.3 x 145.2 mm (11.6 in. diagonal) |
| Display resolution | FHD, 1920 x 1080 pixels |
| Display type | IPS touchscreen |
Physical
| Dimensions (W x H x D) | 302.8 x 216.4 x 76.5 mm |
| Dimensions on bail mount (W x H x D) | 323.9 x 216.4 x 104.5 mm |
| Weight | 2.7 kg (6.0 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 35 cm (13.8 in.) |
| Clearance behind flush-mounted device | 11.1 cm (4 3/8 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 45 W |
| Typical current draw at 12 Vdc | 1.3 A |
| Max. current draw at 12 Vdc | 6.0 A |
| Fuse | 10 A, 125 V fast-acting |
Connectivity
| NMEA 2000 LEN @ 9 Vdc | 2 |
| NMEA 2000 draw | 75 mA max. |
| Wireless frequency and protocols | Wi-Fi and ANT technologies; 2.4 GHz @ 12.3 dBm nominal |
| Memory card | 2 microSD card slots, 32 GB max. card size |
| HTML integration | Compatible with OneHelm integration |
GPS/GNSS
| Max. waypoints | 5,000 |
| Max. routes | 100 (250 waypoints each) |
| Max. active track points | 50,000 points, 50 saved tracks |
Environmental
| Temperature range | -15 to 55°C (5 to 131°F) |
| Water rating | IEC 60529 IPX7 |
Sonar
| Sonar frequencies | Traditional: 50/200, 77/200, 83/200 kHz; Single Channel CHIRP: 40 to 250 kHz; Garmin ClearVu CHIRP: 260/455/800 kHz; Ultra High-Definition ClearVu: 800 kHz (CHIRP 760-880 kHz); Ultra High-Definition SideVu: 1,200 kHz (CHIRP 1,060-1,170 kHz) |
| Sonar transmit power (RMS) | CHIRP: 1000 W; Garmin ClearVu and SideVu CHIRP: 500 W |
| Sonar depth | 5,000 ft. at 1 kW (dependent on transducer and water conditions) |
