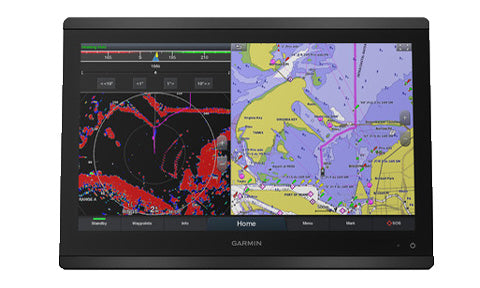

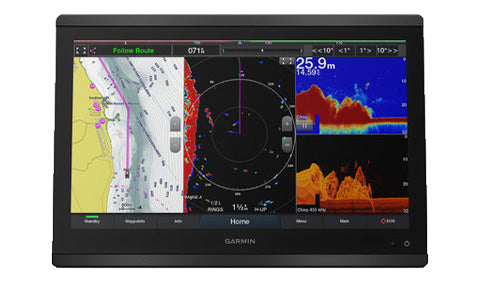

Garmin GPSMAP 8416xsv 16 Inch Chartplotter Fishfinder
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 8416xsv pairs premium glass-helm performance with built-in sonar on a large 15.6-inch screen, ideal for serious sport fishermen, cruisers and sailors. The full HD IPS touchscreen offers wide viewing angles, superior clarity and sunlight readability, even through polarised sunglasses, while the maximum-glass design flat mounts edge-to-edge or flush with a low profile.
Built-in sonar covers dual-channel 1 kW traditional CHIRP, CHIRP ClearVu and CHIRP SideVu scanning, plus Ultra High-Definition scanning sonar, with no black box required, and the unit supports the full Panoptix all-seeing sonar line (transducers sold separately). Wi-Fi, ANT and NMEA 2000 connect the 8416xsv to the Garmin Marine Network for sharing radar, sonar, cameras and instruments across helms, and OneHelm compatibility brings supported third-party systems to the touchscreen. The rugged housing carries an IPX7 water rating.
PRODUCT DETAILS
- 15.6-inch full HD IPS touchscreen (1920 x 1080) with wide viewing angles and sunlight readability
- Built-in dual-channel 1 kW traditional CHIRP, CHIRP ClearVu and CHIRP SideVu sonar (no black box required)
- Built-in Ultra High-Definition scanning sonar support and full Panoptix transducer compatibility
- Maximum-glass design for edge-to-edge flat mounting or low-profile flush mounting
- Large-format networked glass-helm MFD with Wi-Fi, ANT, NMEA 2000 and the Garmin Marine Network
- OneHelm compatible for integrated control of supported third-party onboard systems
- IPX7 waterproof rating with dual microSD card slots (32 GB max)
- GPSMAP 8416xsv multifunction display
- Flush mount kit and gasket
- Bail mount and knobs
- Power cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 345.2 x 194.6 mm (15.6 in. diagonal) |
| Display resolution | FHD, 1920 x 1080 pixels |
| Display type | IPS touchscreen |
Physical
| Dimensions (W x H x D) | 384.7 x 262.6 x 76 mm |
| Dimensions on bail mount (W x H x D) | 405.6 x 279.1 x 103 mm |
| Weight | 4.4 kg (9.6 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 105 cm (41.3 in.) |
| Clearance behind flush-mounted device | 11.1 cm (4 3/8 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 52.1 W |
| Typical current draw at 12 Vdc | 1.3 A |
| Max. current draw at 12 Vdc | 6.0 A |
| Fuse | 10 A, 125 V fast-acting |
Connectivity
| NMEA 2000 LEN @ 9 Vdc | 2 |
| NMEA 2000 draw | 75 mA max. |
| Wireless frequency and protocols | Wi-Fi and ANT technologies; 2.4 GHz @ 12.3 dBm nominal |
| Memory card | 2 microSD card slots, 32 GB max. card size |
| HTML integration | Compatible with OneHelm integration |
GPS/GNSS
| Max. waypoints | 5,000 |
| Max. routes | 100 (250 waypoints each) |
| Max. active track points | 50,000 points, 50 saved tracks |
Environmental
| Temperature range | -15 to 55°C (5 to 131°F) |
| Water rating | IEC 60529 IPX7 |
Sonar
| Sonar frequencies | Traditional: 50/200, 77/200, 83/200 kHz; Single Channel CHIRP: 40 to 250 kHz; Garmin ClearVu CHIRP: 260/455/800 kHz; Ultra High-Definition ClearVu: 800 kHz (CHIRP 760-880 kHz); Ultra High-Definition SideVu: 1,200 kHz (CHIRP 1,060-1,170 kHz) |
| Sonar transmit power (RMS) | CHIRP: 1000 W; Garmin ClearVu and SideVu CHIRP: 500 W |
| Sonar depth | 5,000 ft. at 1 kW (dependent on transducer and water conditions) |
