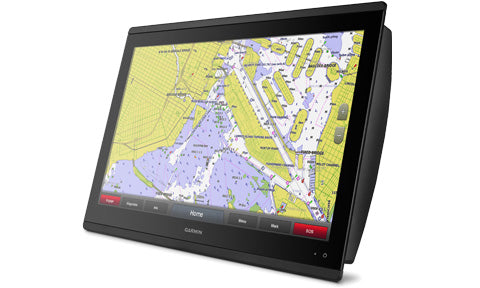

Garmin GPSMAP 8422, Worldwide
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 8422 is a large-format premium glass-helm display built around a 22-inch sunlight-readable full HD IPS touchscreen. In-plane switching delivers consistent, accurate colours from wide viewing angles, while an auto-dimming function keeps the display comfortable in low light or at night. The maximum-glass design lets you install multiple displays with the industry low flush-mount profile, or flat mount them edge-to-edge for a sleek glass-helm look.
One-touch access brings the information you need to your fingertips, and standard USB touch output lets the 8422 double as a touchscreen monitor for Windows and Mac. Wi-Fi, ANT, Bluetooth and NMEA 2000 connect the display into the Garmin Marine Network, sharing radar, sonar, cameras and instruments across helms, while OneHelm compatibility extends touchscreen control to supported third-party systems. The rugged housing carries an IPX7 water rating.
PRODUCT DETAILS
- 22-inch large-format full HD IPS touchscreen (1920 x 1080) with wide viewing angles and sunlight readability
- Maximum-glass design with the industry low flush-mount profile or edge-to-edge flat mounting
- Standard USB touch output for use as a touchscreen monitor with Windows and Mac
- Premium fully networked glass-helm multifunction display
- Wi-Fi, ANT and Bluetooth connectivity with the Garmin Marine Network and NMEA 2000
- OneHelm compatible for integrated control of supported third-party onboard systems
- IPX7 waterproof rating with rugged polycarbonate and die-cast aluminium construction
- GPSMAP 8422 multifunction display
- Flush mount kit and gasket
- Power cable
- NMEA 2000 drop cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Display
| Display size | 478 x 270 mm (22 in. class) |
| Display resolution | FHD, 1920 x 1080 pixels |
| Display type | IPS touchscreen |
Physical
| Dimensions (W x H x D) | 528 x 351 x 71 mm |
| Weight | 7.1 kg (15.63 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | Device: 68.58 cm (27 in.); device and sun cover: 111.76 cm (44 in.); sun cover: 43.18 cm (17 in.) |
Electrical
| Input voltage | 10 to 35 Vdc |
| Max. power usage | 59 W |
| Typical current draw at 12 Vdc | 3.9 A |
| Typical current draw at 24 Vdc | 1.8 A |
| Max. current draw | 4.9 A |
| Fuse | 15 A |
Connectivity
| NMEA 2000 LEN @ 9 Vdc | 2 |
| NMEA 2000 draw | 75 mA max. |
| Wireless frequency and protocols | Wi-Fi, ANT and Bluetooth technologies; 2.4 GHz @ 17.21 dBm max. |
| HTML integration | Compatible with OneHelm integration |
GPS/GNSS
| Max. waypoints | 5,000 |
| Max. routes | 100 |
| Max. active track points | 50,000 points, 50 saved tracks |
Environmental
| Temperature range | -15 to 55°C (5 to 131°F) |
| Water rating | IEC 60529 IPX7 |
