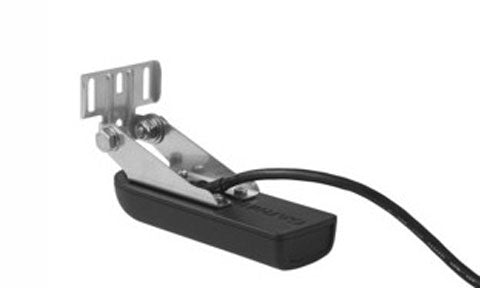

Garmin GT22TW-TM Transom Mount Transducer 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GT22TW-TM is an 8-pin transom or trolling motor transducer pairing High Wide CHIRP traditional sonar (150-240 kHz) with CHIRP ClearVu (DownVu) scanning. The wide traditional beam and high-frequency scanning suit freshwater anglers who want crisp fish arches and clear structure definition beneath the boat.
A built-in fast-response temperature sensor is included. Its compact size makes it well suited to trolling motor mounting, and the 20 ft cable with a 0 to 70 degree transom angle range simplifies fitting.
The GT22TW-TM connects to compatible Garmin STRIKER, ECHOMAP CHIRP and GPSMAP combos; an adapter cable may be needed for 4-pin or 12-pin sounder ports.
PRODUCT DETAILS
- High Wide CHIRP traditional sonar (150-240 kHz)
- CHIRP ClearVu (DownVu) scanning at 455/800 kHz
- 250 W traditional and 350 W ClearVu
- Compact for transom or trolling motor mounting
- Built-in temperature sensor, 8-pin, 20 ft cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Garmin echoMAP CHIRP 45dv GPS with DownVu Preloaded with UK Cartography No Transducer
Garmin echoMAP CHIRP 55dv GPS with DownVu Preloaded with UK Cartography NO Transducer
Garmin echoMAP CHIRP 75dv GPS with DownVu Preloaded with UK Cartography NO Transducer
Garmin echoMAP CHIRP 75sv GPS with SideVu Preloaded with UK Cartography No Transducer
Garmin Striker 5dv GPS Fishfinder with GT20-TM Transducer
General
| Sonar type | CHIRP traditional and CHIRP ClearVu (DownVu) scanning sonar |
| Mounting | Transom or trolling motor |
| Connector | 8-pin |
| Temperature sensor | Built-in fast-response |
Sonar
| Traditional frequency | CHIRP High Wide 150-240 kHz |
| ClearVu (DownVu) frequency | 455 kHz (425-485) / 800 kHz (790-850) |
| Transmit power | 250 W traditional, 350 W DownVu |
| Beamwidth | Traditional 24-16 deg; DownVu 2.0x50 @455, 1.0x30 @800 |
| Maximum depth | 800 ft traditional; 500 ft DownVu |
Physical
| Cable length | 20 ft (6 m) |
| Supported transom angle | 0-70 degrees |
Compatibility
| Compatible systems | Garmin STRIKER dv/sv, ECHOMAP CHIRP dv/sv and compatible GPSMAP sonar combos accepting an 8-pin CHIRP traditional/ClearVu transducer. An adapter may be required for 4-pin or 12-pin sounders. |
