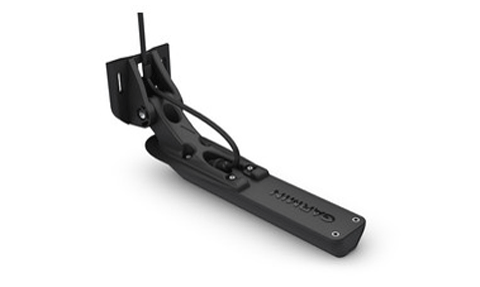

Garmin GT34UHD-TM Transom Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GT34UHD-TM is a compact transom-mount transducer focused on Ultra High-Definition scanning sonar. It delivers Garmin ClearVu directly beneath the boat and SideVu to either side, producing detailed, near-photographic imaging of fish-holding structure. The GT34 concentrates on scanning sonar and does not include traditional sonar.
Running 800 kHz ClearVu and 1,200 kHz SideVu at 500 W, it is well suited to inshore and freshwater anglers who want to upgrade an existing Garmin chartplotter to high-resolution scanning. A fast-response temperature sensor is built in, and the transducer can be mounted on a transom or trolling motor. A 12-pin connector and 6 m (20 ft.) cable complete the package.
PRODUCT DETAILS
- Transom-mount Ultra High-Definition ClearVu and SideVu scanning transducer
- UHD ClearVu at 800 kHz and UHD SideVu at 1,200 kHz for high-resolution imaging
- Dedicated scanning sonar (no traditional sonar)
- SideVu coverage of 38 m (125 ft.) each side; ClearVu to 61 m (200 ft.)
- Transmit power of 500 W ClearVu/SideVu (RMS)
- Built-in fast-response water temperature sensor
- 12-pin connector with a 6 m (20 ft.) cable
- Mounts on a transom or trolling motor
- GT34UHD-TM transom-mount transducer with 6 m (20 ft.) cable
- Transom mounting bracket and hardware
- Cable-entry cover and fixings
- Trolling-motor mounting hardware
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Transducer type | Transom-mount scanning transducer providing Ultra High-Definition ClearVu and SideVu sonar; ClearVu and SideVu only (no traditional sonar) |
Sonar
| Sonar technologies | Garmin ClearVu and Garmin SideVu, including Ultra High-Definition (UHD) scanning. Traditional sonar is not supported |
| ClearVu frequency | UHD ClearVu 800 kHz (760 to 880 kHz) |
| SideVu frequency | UHD SideVu 1,200 kHz (1060 to 1170 kHz) |
| Transmit power (RMS) | ClearVu/SideVu: 500 W |
| Maximum range (ClearVu) | 61 m (200 ft.) |
| Maximum range (SideVu) | 38 m (125 ft.) each side, 76 m (250 ft.) total |
Beam
| Beam width (ClearVu / SideVu) | ClearVu 0.76 x 46 degrees at 800 kHz; SideVu 0.44 x 55 degrees at 1,200 kHz (-3 dB) |
Mounting
| Mount type | Transom mount; can also be mounted on a trolling motor |
| Supported transom angles | 0 to 70 degrees |
| Built-in temperature sensor | Yes, with depth, speed and temperature support (D, T) |
Physical
| Dimensions (L x W x H) | 197.93 x 38.21 x 23.14 mm (7.8 x 1.5 x 0.9 in.) |
| Operating temperature range | 0 to 50°C (32 to 122°F) |
| Storage temperature range | -40 to 70°C (-40 to 158°F) |
Connectivity
| Connector | 12-pin Garmin transducer connector |
| Cable length | 6 m (20 ft.) |
Compatibility
| Compatible chartplotters and sounders | STRIKER Vivid/Plus (CV and SV series), ECHOMAP UHD2 (CV and SV series), ECHOMAP Ultra 2, GPSMAP 8600xsv, GPSMAP 9000 (9000xsv), GCV 20 black box and GSD 25 sounder module, and the GPSMAP 7x3/9x3/12x3/16x3xsv series. Some pairings require a Garmin adapter cable (sold separately) |
