Garmin GT8HWTM Transom Mount Transducer 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

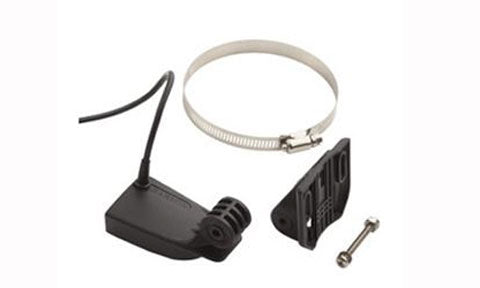

The Garmin GT8HW-TM is an 8-pin transom or trolling motor transducer with High Wide band CHIRP traditional sonar (150-240 kHz). The wider beam, up to a 24 degree angle, covers a larger area in the water and is ideal for shallow-water anglers wanting clear bottom definition and crisp, wide fish arches with good target separation.
A built-in fast-response temperature sensor is included, and the 20 ft cable with a 0 to 70 degree transom angle range makes fitting straightforward on the transom or a trolling motor. Installation instructions are supplied.
The GT8HW-TM connects to compatible Garmin STRIKER, ECHOMAP CHIRP and GPSMAP combos; an adapter cable may be needed for 4-pin or 12-pin sounder ports.
PRODUCT DETAILS
- High Wide band CHIRP traditional sonar (150-240 kHz)
- Wide beam up to 24 degrees for greater coverage
- 250 W power rating
- Transom or trolling motor mounting
- Built-in temperature sensor, 8-pin, 20 ft cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Garmin echoMAP CHIRP 45dv GPS with DownVu Preloaded with UK Cartography No Transducer
Garmin echoMAP CHIRP 55dv GPS with DownVu Preloaded with UK Cartography NO Transducer
Garmin echoMAP CHIRP 75dv GPS with DownVu Preloaded with UK Cartography NO Transducer
Garmin Striker 5dv GPS Fishfinder with GT20-TM Transducer
Garmin Striker 7dv GPS Fishfinder with GT20-TM Transducer
General
| Sonar type | High Wide band CHIRP traditional sonar |
| Mounting | Transom or trolling motor |
| Connector | 8-pin |
| Temperature sensor | Built-in fast-response |
Sonar
| Frequency | CHIRP High Wide 150-240 kHz |
| Transmit power | 250 W |
| Beamwidth | 24-16 degrees |
| Maximum depth | 800 ft (freshwater) |
Physical
| Cable length | 20 ft (6 m) |
| Supported transom angle | 0-70 degrees |
Compatibility
| Compatible systems | Garmin STRIKER, ECHOMAP CHIRP and compatible GPSMAP sonar combos accepting an 8-pin CHIRP traditional transducer. An adapter may be required for 4-pin or 12-pin sounders. |
