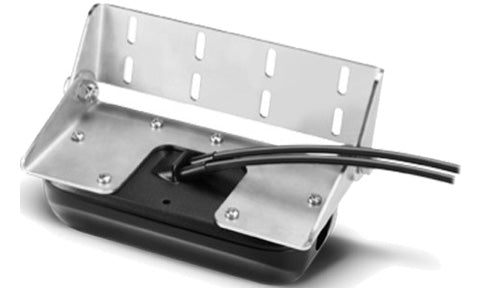

Garmin Panoptix PS30 Down Sonar Transducer Transom or Trolling Motor Mounting Ethernet
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

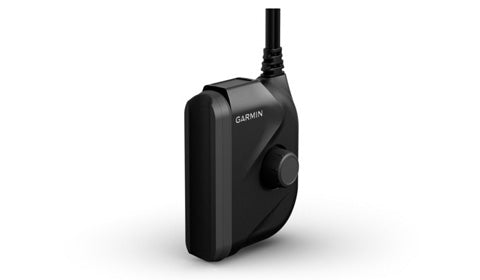

The Garmin Panoptix PS30 is a down-looking, real-time sonar transducer for transom or trolling motor mounting. It delivers LiveVu Down, RealVu 3D Down and RealVu 3D Historical views, letting you watch fish and bait moving in the water column beneath the boat in real time, even while stationary.

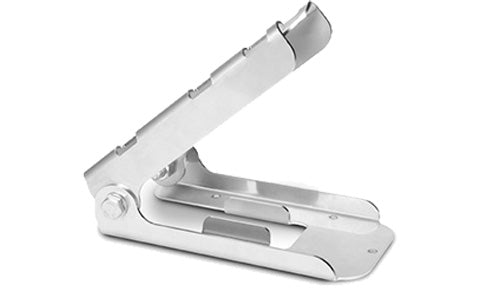

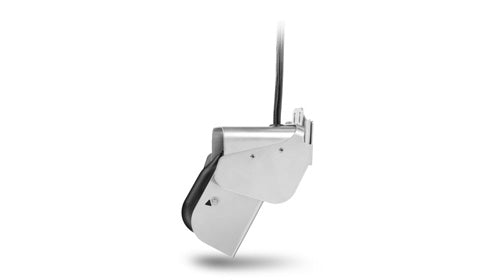

Built-in pitch and roll compensation keeps the image stable, and the multi-beam transducer scans at 417 kHz to a range of around 90 m. It connects to the boat over Ethernet, drawing power through the network cable via the supplied 30 ft lead, and includes a transom mounting kit.
The PS30 works with Panoptix-capable Garmin chartplotters, including ECHOMAP CHIRP, Plus and UHD sv models, GPSMAP xsv combos and the STRIKER 7dv.
PRODUCT DETAILS
- Panoptix LiveVu Down and RealVu 3D Down real-time sonar

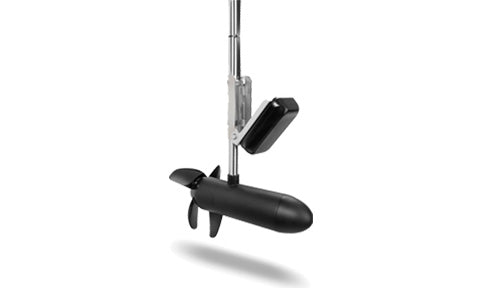

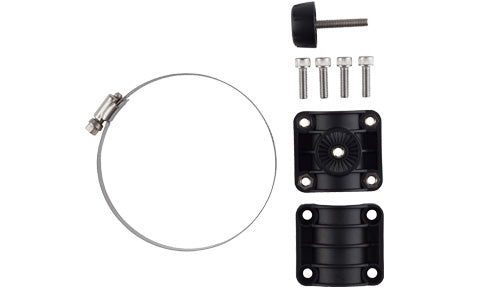

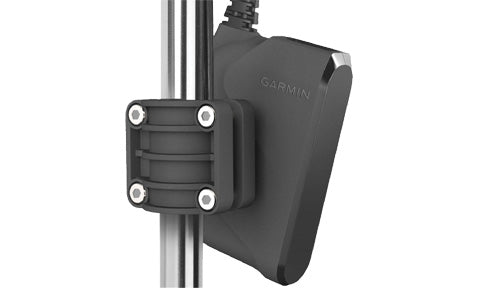

- Transom or trolling motor mounting
- 417 kHz multi-beam, 120 by 120 degree coverage, 300 ft range
- Built-in pitch and roll compensation for stable images
- Ethernet connection, powered over the network cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
Garmin echoMAP CHIRP 75sv GPS with SideVu Preloaded with UK Cartography No Transducer
Garmin echoMAP CHIRP 95sv GPS with SideVu Preloaded with UK Cartography No Transducer
Garmin Echomap Plus 75sv Chartplotter no transducer Bluechart G2 UK
Garmin GPSMAP 722xs Chartplotter Sonar Combo with 7 inch Touchscreen
Garmin GPSMap 7412xsv J1939 12 inch Touchscreen Multifunction Display with Built in Sonar
Garmin Striker 7dv GPS Fishfinder with GT20-TM Transducer
General
| Sonar type | Panoptix multi-beam down-looking real-time sonar (LiveVu Down, RealVu 3D Down and Historical) |
| Mounting | Transom or trolling motor |
| Connection | Ethernet (powered over the Ethernet cable) |
| Stabilisation | Built-in pitch and roll compensation |
Sonar
| Frequency | 417 kHz |
| Transmit power | 144 W |
| Beamwidth | 120 x 120 degrees |
| Maximum range | 300 ft |
Physical
| Cable length | 30 ft (9 m) Ethernet |
| Supported transom angle | 0-70 degrees |
Compatibility
| Compatible systems | Panoptix-capable Garmin chartplotters, including ECHOMAP CHIRP/Plus/UHD sv, GPSMAP xsv combos and STRIKER 7dv. A network connection to a compatible plotter is required. |
