Garmin

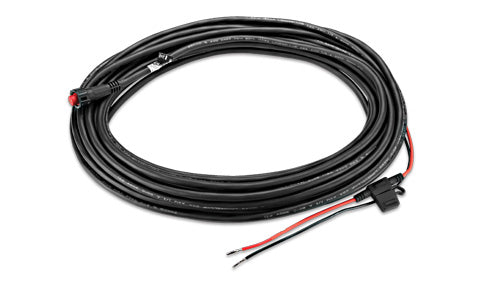

Garmin Power Cable for Open Array Pedestal Radar 12AWG
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This heavy-duty power cable supplies the open-array pedestal of Garmin xHD2 series radars. Its 12 AWG conductors are sized to deliver the substantial current a high-output open-array radar requires while keeping voltage drop in check across a long 15 metre run between the power source and a mast or arch-mounted pedestal.
The cable suits the 4 kW, 6 kW and 12 kW xHD2 series radars. When used with the 12 kW model, a separate voltage converter is required to meet that radar's power needs. Its generous length gives installers flexibility to route the cable cleanly from the helm or distribution panel up to the radar pedestal.
PRODUCT DETAILS
- Genuine Garmin radar pedestal power cable
- 15 metre (48 ft) length for mast or arch installations
- Heavy 12 AWG conductors for high-current supply
- Suits 4 kW, 6 kW and 12 kW xHD2 series open-array radars
- Voltage converter required when used with the 12 kW radar
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Cable
| Type | Radar pedestal power cable |
| Length | 15 m (48 ft) |
| Conductor | 12 AWG |
| Function | Supplies power to the open-array radar pedestal |
Compatibility
| Compatible with | 4 kW, 6 kW and 12 kW xHD2 series open-array radars (voltage converter required with 12 kW) |
