Garmin

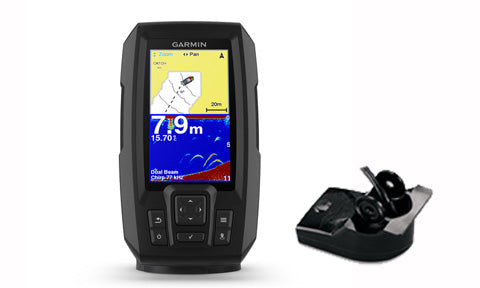

Garmin Striker Plus 4 dual beam transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The STRIKER Plus 4 is a bright 4.3-inch fishfinder that adds Garmin Quickdraw Contours to the compact STRIKER platform, letting you record your own one-foot contour maps as you fish and store up to two million acres of them. Dual-beam Garmin CHIRP traditional sonar delivers crisp fish arches, while the built-in, high-sensitivity GPS marks and returns you to waypoints and shows your boat speed.
It is a fishfinder rather than a chartplotter, so no charts are preloaded, but the custom Quickdraw maps and waypoints can be shared with other compatible units. The supplied dual-beam transducer includes transom and trolling-motor mounting hardware, and the rugged IPX7 housing suits open-water and ice fishing.
PRODUCT DETAILS
- 4.3-inch QSVGA colour display with keypad control
- Dual-beam Garmin CHIRP traditional sonar for crisp fish arches
- Quickdraw Contours records custom 1 ft contour maps (up to 2 million acres)
- Built-in high-sensitivity GPS to mark and navigate to waypoints
- Includes dual-beam transducer with transom and trolling-motor mounts
- Rugged, waterproof to IPX7
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Type | Fishfinder with built-in GPS (not a chartplotter; no preloaded charts) |
| Control | Keypad operation |
Display
| Display size | 4.3 in. (10.9 cm) diagonal |
| Display resolution | 480 x 272 pixels |
| Display type | QSVGA colour |
Sonar
| Sonar technology | Garmin CHIRP traditional sonar (dual-beam) |
| Sonar frequencies | 77/200 kHz CHIRP |
| Transmit power | 200 W (RMS), 1,600 W (peak-to-peak) |
| Maximum depth | 1,600 ft (488 m) freshwater; 750 ft (229 m) saltwater |
| Transducer included | Garmin dual-beam transom/trolling-motor CHIRP transducer with temperature sensor |
| Sonar features | Built-in flasher, A-scope, split-screen zoom, Smooth Scaling |
GPS
| GPS | Integrated high-sensitivity GPS; mark and navigate to waypoints, view boat speed |
| Mapping | Garmin Quickdraw Contours mapping (store up to 2 million acres with 1 ft contours) |
Physical
| Dimensions (W x H x D) | 9.8 x 17.4 x 4.5 cm (3.9 x 6.9 x 1.8 in.) |
| Weight | 0.30 kg (10.6 oz) |
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C (5 to 131 F) |
| Power source | 12 to 20 Vdc; rated current 1.5 A; fuse 3 A, 250 V fast-acting |
