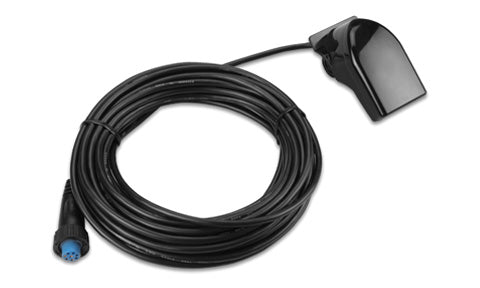

Garmin Transom Trolling Motor Mount Dual Beam Transducer 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This Garmin dual-beam transducer is the transom or trolling-motor mount unit fitted to many Garmin echo and ECHOMAP fishfinders, supplied here as a replacement with the 8-pin connector. It runs at 77 and 200 kHz with 500 W of power and reports both depth and water temperature.
The 45 and 15 degree dual beams provide wide coverage at low frequency and a focused, detailed cone at high frequency, reading to around 1,900 ft, and the transducer mounts on transom angles from 0 to 70 degrees. An 8-pin to 4-pin adapter cable (010-11947-00) is required when connecting to a 4-pin echo, ECHOMAP or STRIKER unit; the 4-pin version (010-10249-20) is preferred where supported.
PRODUCT DETAILS
- 77/200 kHz dual-beam operation with 500 W output
- Transom or trolling-motor mount, 0 to 70 degree transom angles
- 45 degree and 15 degree beams for wide coverage and fine detail
- Depth and temperature data to around 1,900 ft
- 8-pin connector with 30 ft cable, mounting hardware included
- Adapter 010-11947-00 needed for 4-pin units; 010-10249-20 preferred where supported
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Garmin echo 301dv with 77 200kHz Transom Mount Transducer
Garmin echoMAP CHIRP 45dv GPS with DownVu Preloaded with UK Cartography No Transducer
Garmin echoMAP CHIRP 55dv GPS with DownVu Preloaded with UK Cartography NO Transducer
Garmin echoMAP CHIRP 75dv GPS with DownVu Preloaded with UK Cartography NO Transducer
Garmin echoMAP CHIRP 75sv GPS with SideVu Preloaded with UK Cartography No Transducer
Garmin echoMAP CHIRP 95sv GPS with SideVu Preloaded with UK Cartography No Transducer
Garmin Striker 4 GPS Fishfinder with Dual Beam Transom or Trolling Transducer
Garmin Striker 4dv GPS Fishfinder with GT20-TM Transducer
Garmin Striker 5dv GPS Fishfinder with GT20-TM Transducer
Garmin Striker 7dv GPS Fishfinder with GT20-TM Transducer
Garmin Striker 7sv GPS Fishfinder with GT52HW-TM transducer
General
| Transducer type | Dual-beam HD-ID traditional sonar (Garmin Design Dual Beam) |
| Mounting | Transom or trolling motor |
| Connector | 8-pin |
| Depth and temperature | Depth and temperature (D/T) |
Sonar
| Frequency | 77 / 200 kHz |
| Transmit power | 500 W (RMS) |
| Beamwidth | 45 deg (77 kHz) / 15 deg (200 kHz) |
| Maximum depth | 1,900 ft |
Physical
| Cable length | 30 ft (9 m) |
| Supported transom angle | 0-70 degrees |
Compatibility
| Compatible systems | Replacement dual-beam transducer for Garmin echo and ECHOMAP series fishfinders; also compatible with STRIKER fishfinders. An 8-pin to 4-pin adapter cable (010-11947-00) is required for 4-pin units. The 4-pin version (010-10249-20) is preferred where supported. |
