Garmin
GPSMAP® 9019, Premium chartplotter with worldwide basemap - 010-02673-00
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

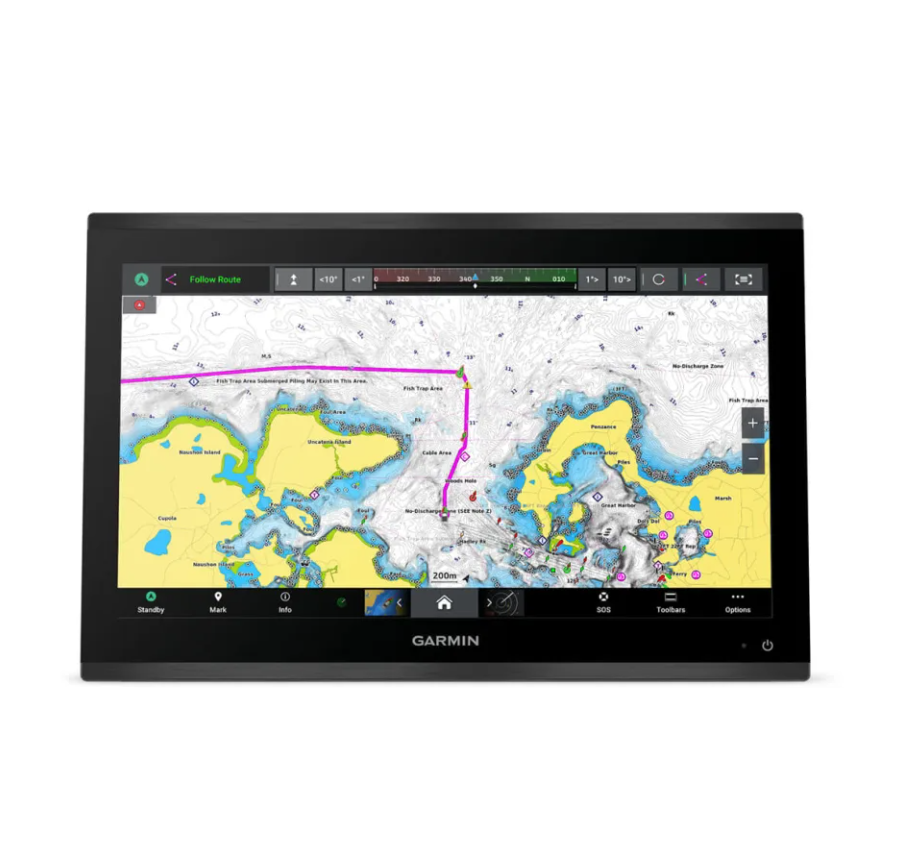

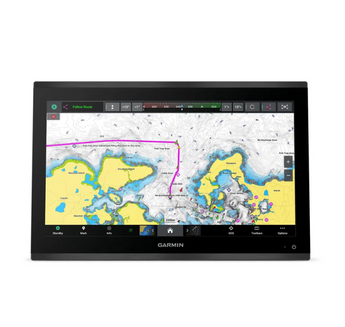

The Garmin GPSMAP 9019 brings the industry's first 4K resolution touchscreen chartplotter experience to a 19 inch glass helm. Its premium IPS display is sunlight-readable with edge-to-edge clarity, built from polycarbonate and die-cast aluminium for a luxury finish on larger vessels.
The 9019 is built on the Garmin BlueNet network, sharing sonar, radar, detailed charts and HDMI video at high speed across compatible displays. Sonar capability is added over the network or with a compatible sonar black box, since this model has no built-in transducer. Connectivity includes two HDMI inputs, HDMI out, NMEA 2000, NMEA 0183, J1939 engine data, Wi-Fi and Bluetooth, plus two internal microSD readers. The unit flush mounts with the supplied template, hardware and metal trim, and a networked Garmin GPS antenna is required for navigation.
PRODUCT DETAILS
- Premium 19 in IPS 4K UHD (3840 x 2160) sunlight-readable touchscreen multi-function display
- Industry-leading 4K resolution chartplotter for a luxury glass helm
- Garmin BlueNet networking for high-speed sharing of sonar, radar, charts and HDMI video
- Add networked sonar via the Garmin BlueNet network or a compatible sonar black box
- Two HDMI inputs plus HDMI out for cameras, media and external monitors
- Dual internal microSD card readers (up to 1 TB each) for charts and data
- NMEA 2000, NMEA 0183 and J1939 engine connectivity with Wi-Fi and Bluetooth
- Flush-mount installation with template, hardware and metal trim caps included
- GPSMAP 9019 chartplotter unit
- Flush-mount template, gaskets and hard stops
- Mounting hardware (wood screws, nut plates and machine screws)
- Metal decorative trim caps
- Power cable with inline fuse holder
- NMEA 2000 starter kit
- Protective bumper
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Display
| Display size | 19 in (46.9 cm) diagonal; 40.9 x 23 cm (16.1 x 9.1 in.) |
| Display resolution | 4K UHD, 3840 x 2160 pixels |
| Touchscreen | Yes, IPS multi-touch |
Physical
| Dimensions (W x H x D) | 45.7 x 30.5 x 6.9 cm (18 x 12 x 2.7 in.) |
| Weight | 6.42 kg (14.16 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Mounting | Flush mount (template and hardware included) |
| Compass-safe distance | 46 cm (18 in.) |
Electrical
| Input voltage | 10 to 35 Vdc |
| Fuse | 15 A |
| Maximum power usage | 60 W |
| Typical current draw | 4.6 A at 12 Vdc; 2.3 A at 24 Vdc |
Sonar
| Sonar | No built-in sonar; supports networked sonar via Garmin BlueNet or a sonar black box |
Connectivity
| Wi-Fi | Yes, 2.4 GHz (Wi-Fi, ANT and Bluetooth) |
| Networking | Garmin BlueNet network ports; NMEA 2000; NMEA 0183; J1939 |
| Video | Two HDMI in (up to 4K at 60/30 fps), HDMI out, composite video in (CVBS) |
| NMEA 2000 LEN | 2 (75 mA max draw) |
GPS/GNSS
| Position source | External Garmin NMEA 2000 GPS antenna (networked) |
General
| Memory card | 2 internal microSD card readers, up to 1 TB each (exFAT, class 10) |
| Maximum waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Environmental
| Water rating | IEC 60529 IPX7 |
| Operating temperature range | -15 to 55 C (5 to 131 F) |
