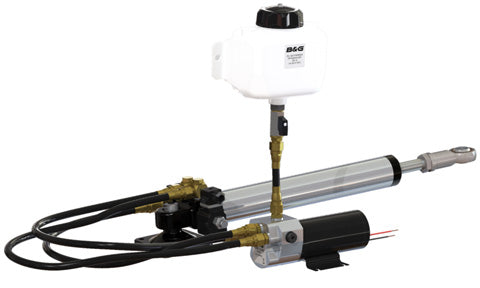

B&G, Simrad Hydraulic Ram T3 12v Up to 36,000kg Displacement
Manufacturer Part Number:
000-13788-001
Manufacturer Part Number:
000-13788-001
B&G, Simrad T3 12V Hydraulic RAM. High power, efficient drive units for maximum power with minimum consumption. Ram drives allow the Power Steer mode on the Pilot to be used in cases of manual steering failure. T3 drives have a separate hydraulic pump to allow for greater mounting flexibility on this larger cylinder. Max Boat Size 36000 kg. Compatible Computers H5000, NAC-3
Home or Marina Delivery
Pick up at Hamble
More Information
Autopilot Drive Unit Navigation
Technical Data
Voltage: 12 or 24 VDC
Typical Amp-hour: 60 kg at 25% duty: 12V 2.7 Amps - 24V 1.4 Amps
Typical Current Intermittent 350 kg: 12V 34.0 Amps - 24V 15.5 Amps
Hard-over time (Nominal): 13 seconds
Ingress protection: IP67
EMC Protection BS EN 60945:2002
Ignition Protection: BS EN 28846:1993
Ambient operating Temperature: -15 to + 55 deg C
Max Operating Thrust: 1080 kg (Intermittent)
Clutch coil: 12/24V 12 watt
Clutch connection DIN 43650 (4-9 mm cable)
Fluid ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV
The following commercial fluids are suitable: Fuchs Renolin B 15 HV1 Seastar HA5430
Weight: 14 kg
