Maretron

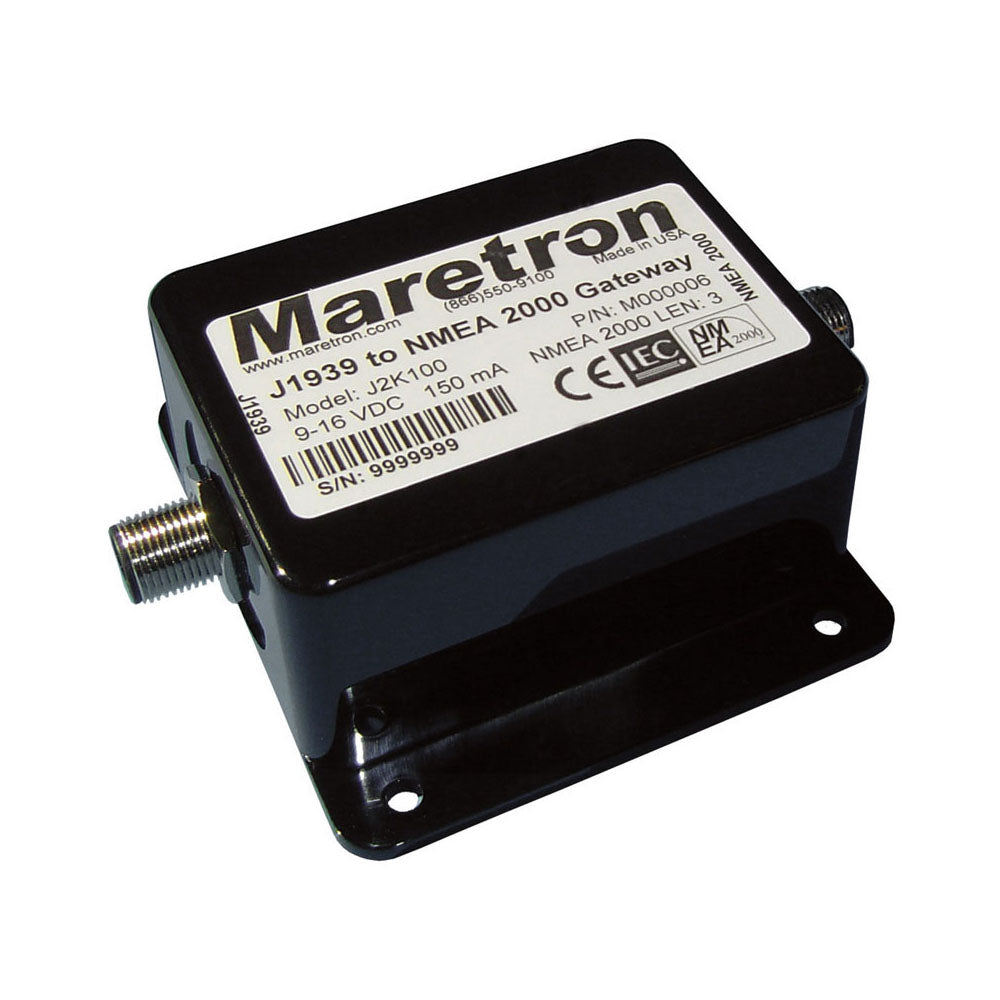

J1939 TO NMEA 2000 GATEWAY
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Maretron J2K100 J1939 to NMEA 2000 Gateway connects directly into the J1939 network of compatible engines, transmissions and gensets and translates that data to the NMEA 2000 marine interface. Critical engine, transmission and genset information such as tachometer, oil pressure, coolant temperature, boost pressure, fuel rate, engine hours and load is then distributed throughout the vessel over a single cable, where it can be shown on any NMEA 2000 compatible display.
The gateway only listens to the J1939 network and draws no power from it, taking its power instead from the NMEA 2000 interface. Because it never transmits onto the J1939 bus it will not interfere with existing engine control or status data in any way. It is compatible with engines, transmissions and gensets from manufacturers including Caterpillar, Cummins, Detroit Diesel, John Deere, Kohler, Northern Lights, Onan, Perkins, Steyr, Volvo Penta and Yanmar.
Paired with Maretron displays or N2KView and a GPS200 antenna, the J2K100 can also form part of a complete fuel computer that shows fuel rate, economy and range.
PRODUCT DETAILS
- Converts J1939 engine, transmission and genset data to NMEA 2000
- Listens only, drawing no power from the J1939 bus and never transmitting to it
- Distributes critical engine data over a single cable to any NMEA 2000 display
- Compatible with Caterpillar, Cummins, John Deere, Volvo Penta, Yanmar and more
- Can form part of a complete fuel computer with GPS and Maretron displays
- Powered from the NMEA 2000 network for simple installation
- NMEA 2000 certified in a rugged flanged enclosure
- J2K100-01 J1939 to NMEA 2000 Gateway
- Mounting hardware
- User's manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Operating Voltage | 9 to 16 Volts DC |
| Power Consumption | <150mA average current drain |
| Load Equivalence Number (LEN) | 3 |
| Reverse Battery Protection | Yes, indefinitely |
| Load Dump Protection | Yes, energy rated per SAE J1113 |
Mechanical
| Size | 3.11" x 3.46" x 1.38" (79mm x 88mm x 35mm) including mounting flanges |
| Weight | 8 oz (227 g) |
Environmental
| Degree of Protection | IP67 |
| Operating Temperature | -25°C to 55°C |
| Storage Temperature | -40°C to 70°C |
NMEA 2000
| Certification Level | Level B+ |
Certifications
| Standards | NMEA 2000 Level B+, IEC 61162-3, IEC 60945, FCC and CE Mark |
