Maretron

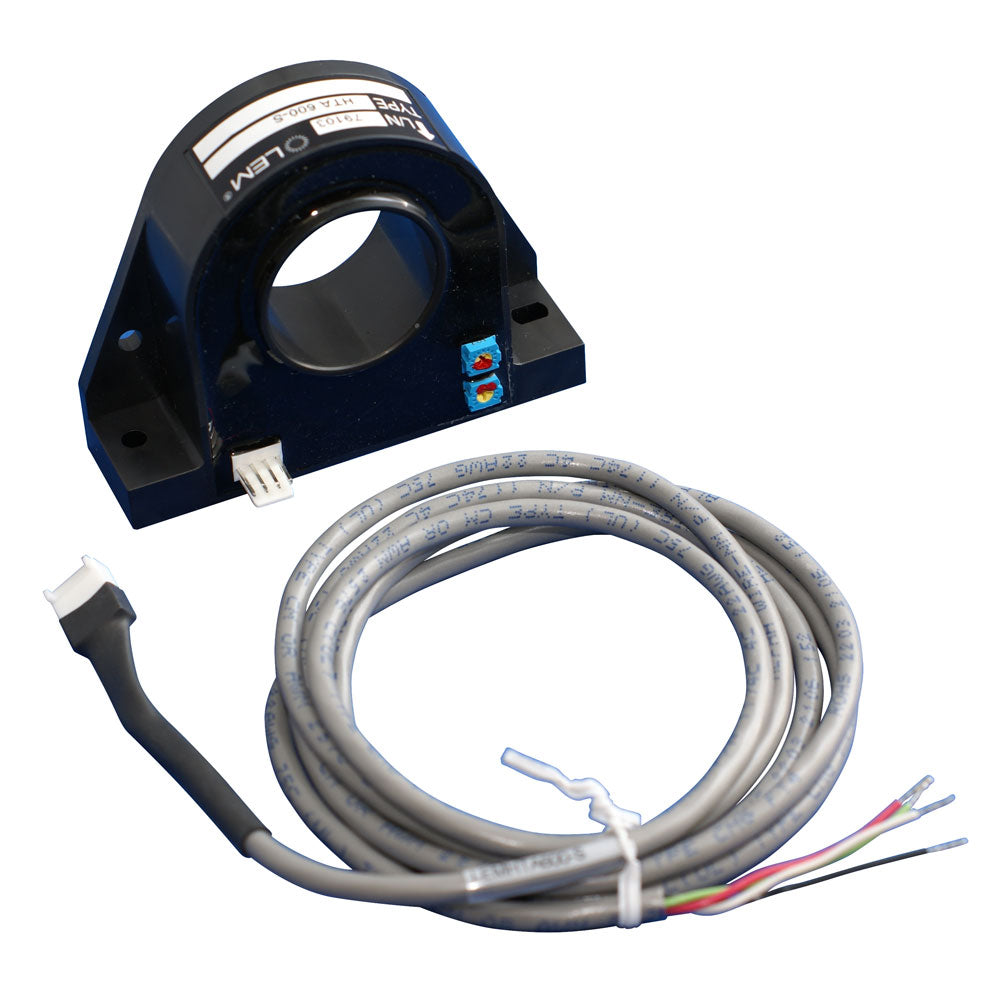

Maretron 600 Amp DC Transducer with Cable
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Maretron LEMHTA600-S is a 600 amp Hall-effect current transducer supplied with cable for use with the Maretron DCM100 DC Monitor. Rather than an inline shunt, the transducer simply slips over the DC cable you wish to measure, so there is no need to break connections or install extra terminals during fitting.
Working with the DCM100, the LEMHTA600-S allows accurate measurement of battery and load currents up to 600 amps, which the monitor then reports over the NMEA 2000 network alongside voltage, state of charge and other data. This 600 amp version is the largest transducer in the range, suited to high-current house banks, inverters, windlasses and thrusters where the standard 200 amp or 400 amp units would be too small.
PRODUCT DETAILS
- 600 amp Hall-effect DC current transducer with cable
- Slips over the DC cable, no need to break connections or fit a shunt
- Designed for use with the Maretron DCM100 DC Monitor
- Largest transducer in the range for high-current banks and loads
- Measures battery and load currents for reporting over NMEA 2000
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Hall-effect DC current transducer with cable |
| Rated Current | 600 amps |
| For Use With | Maretron DCM100 DC Monitor |
| Installation | Slips over the DC cable, no inline shunt required |
No videos available for this product.
No downloads available for this product.
No frequently asked questions for this product.
