Discontinued
This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

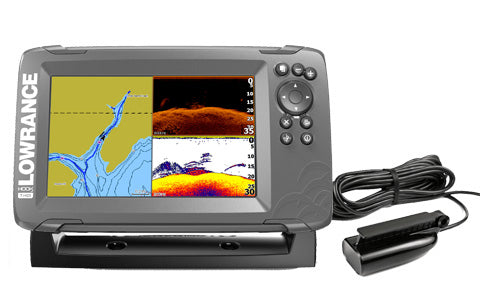

Lowrance Hook2-7 SplitShot Chartplotter Fishfinder Hight CHIRP and DownScan Imaging
000-14023-001
The Lowrance Hook2-7 SplitShot was a 7-inch combo chartplotter and fishfinder supplied with a SplitShot transducer, combining High CHIRP sonar with DownScan Imaging. It added full chart support to Autotuning sonar. This model has been discontinued.
Description
The Lowrance Hook2-7 SplitShot was a 7-inch combo chartplotter and fishfinder supplied with a SplitShot transducer, pairing wide-angle High CHIRP sonar with photo-like DownScan Imaging. Built-in GPS and chart support let anglers navigate and mark waypoints, while Autotuning sonar kept the picture clear without manual adjustment, all on a large SolarMAX display.
The Hook2-7 has since been discontinued and is succeeded within the current Lowrance range by the Hook Reveal-7, which adds Genesis Live mapping and a faster processor.
PRODUCT DETAILS
- 7-inch SolarMAX display with built-in GPS
- Combo chartplotter and fishfinder
- SplitShot: High CHIRP plus DownScan Imaging
- Autotuning sonar, no manual adjustment
- Supplied with SplitShot transducer, microSD charts
No exploded diagram available for this product.
No compatible transducers listed for this product.
Display
| Screen size | 7 in SolarMAX |
| Waterproof rating | Front IPX6, rear IPX7 |
Navigation
| GPS | Built-in GPS antenna |
| Chart media | microSD |
Power
| Supply voltage | 10.4-17.0 V DC |
| Power consumption | < 16.3 W (3 A fuse) |
Environmental
| Operating temperature | -15 C to +55 C |
Physical
| Weight | 0.70 kg |
| Dimensions | 164.2 mm W x 236.4 mm H |
Sonar
| Sounder | Autotuning High CHIRP with DownScan |
