Discontinued
This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

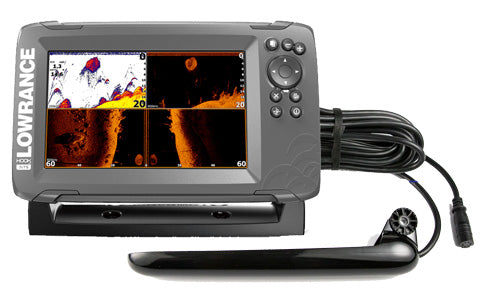

Lowrance Hook2-7x TripleShot GPS Fishfinder High CHIRP, SideScan and DownScan Imaging
000-14022-001
The Lowrance Hook2-7x TripleShot was a 7-inch GPS fishfinder supplied with a TripleShot transducer, adding SideScan to High CHIRP and DownScan Imaging. It gave a full picture either side of and below the boat. This model has been discontinued.
Description
The Lowrance Hook2-7x TripleShot was a 7-inch fishfinder with built-in GPS, supplied with a TripleShot transducer that combined wide-angle High CHIRP sonar with SideScan and DownScan Imaging for a complete view below and to either side of the boat. Autotuning sonar and GPS waypoints and trails made it capable yet simple from a large SolarMAX display.
The Hook2-7x has since been discontinued and is succeeded within the current Lowrance range by the Hook Reveal-7, which adds full chart support and Genesis Live mapping.
PRODUCT DETAILS
- 7-inch SolarMAX display with built-in GPS
- Autotuning sonar, no manual adjustment
- TripleShot: High CHIRP, SideScan and DownScan
- GPS waypoints and trails
- Supplied with TripleShot transducer
No exploded diagram available for this product.
No compatible transducers listed for this product.
Display
| Screen size | 7 in SolarMAX |
| Waterproof rating | Front IPX6, rear IPX7 |
Power
| Supply voltage | 10.4-17.0 V DC |
| Power consumption | < 16.3 W (3 A fuse) |
Environmental
| Operating temperature | -15 C to +55 C |
Physical
| Weight | 0.70 kg |
| Dimensions | 164.2 mm W x 236.4 mm H |
Sonar
| Sounder | Autotuning High CHIRP, SideScan and DownScan |
Navigation
| GPS | Built-in GPS antenna |
