Victron Lynx Distributor (4-way)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

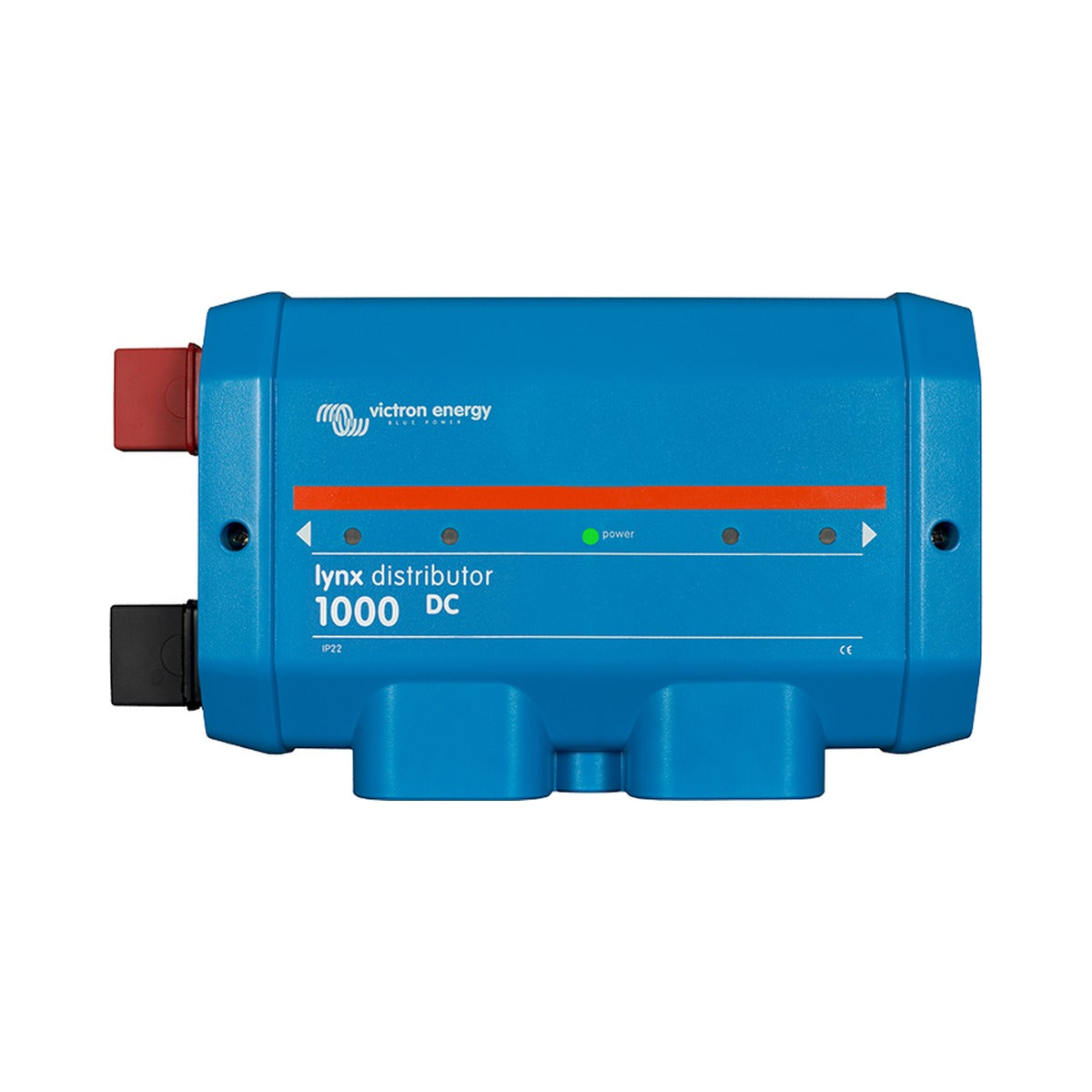

The Victron Lynx Distributor is the fused distribution module of the modular Lynx Distribution system. It carries a positive and a negative tinned-copper busbar, with four fuse-protected positive connections, four negative connections and a ground connection, all behind a removable front cover.
Each of the four circuits takes a MEGA fuse (purchased separately) and is individually monitored. A power LED and four fuse-status LEDs give an at-a-glance health check, and when connected to a Lynx Smart BMS the fuse status of up to four Distributors is reported through the VictronConnect app, a GX device and the VRM portal. A 40 cm RJ10 cable is included to power the monitoring circuit and carry fuse data from a Lynx Shunt VE.Can or Lynx Smart BMS.
Rated for 1000 A continuous at 12, 24 or 48 V, the Lynx Distributor bolts directly to other Lynx modules to build a complete DC busbar with integrated fusing. Its ABS enclosure offers IP22 protection. The M10 version uses M10 busbar joints, while the fuse and cable connections are M8.
PRODUCT DETAILS
- Four fuse-protected positive connections plus four negative connections and a ground point
- Individual fuse monitoring with a power LED and four fuse-status LEDs
- Fuse status reported to a connected Lynx Smart BMS, GX device and the VRM portal
- Accepts MEGA fuses (sold separately), one per circuit
- 1000 A continuous current rating at 12, 24 or 48 V system voltage
- Includes a 40 cm RJ10 cable for power and fuse data
- Modular Lynx design with M10 busbar joints and M8 fuse and cable connections
No compatible transducers listed for this product.
Key specifications
| Continuous current | 1000 A continuous |
| System voltage | 12 / 24 / 48 V |
| Connection studs | M10 busbar joints; M8 fuse and cable studs |
| Communication | Fuse monitoring via RJ10 to Lynx Smart BMS |
| Protection rating | IP22 |
| Number of outputs | 4 fused, all monitored |
Electrical
| Continuous current rating | 1000 A continuous |
| Voltage range | 9 - 60 Vdc |
| Supported system voltages | 12, 24 or 48 V |
| Reverse polarity protection | Yes (RJ10 connection is not reverse-polarity protected) |
| Power consumption | Max 100 mA with all LEDs on; powered from Lynx Shunt VE.Can or Lynx Smart BMS |
| Fuse type | MEGA fuse (M8), sold separately |
Connections
| Busbar stud size | M8 or M10 |
| Number of fused outputs | 4 (MEGA) |
| Fuse holder size | M8 |
| Fuse status monitoring | Yes, LED per fuse; data read by Lynx Smart BMS |
| Busbar material | Tinned copper |
| Busbar dimensions (HxW) | 8 x 30 mm |
Communication & control
| Lynx Distributor fuse monitoring | Reports fuse and operational status to a Lynx Smart BMS via 40 cm RJ10 cable (included) |
Mechanical
| Enclosure material | ABS |
| Dimensions (HxWxD) | 290 x 170 x 80 mm |
| Weight | 2.2 kg |
Environmental
| Operating temperature range | -40 to +60°C |
| Storage temperature range | -40 to +60°C |
| Humidity | Max 95% (non-condensing) |
| Protection category | IP22 |
