Victron Lynx Class-T Power In
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

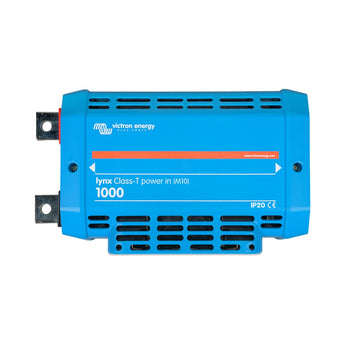

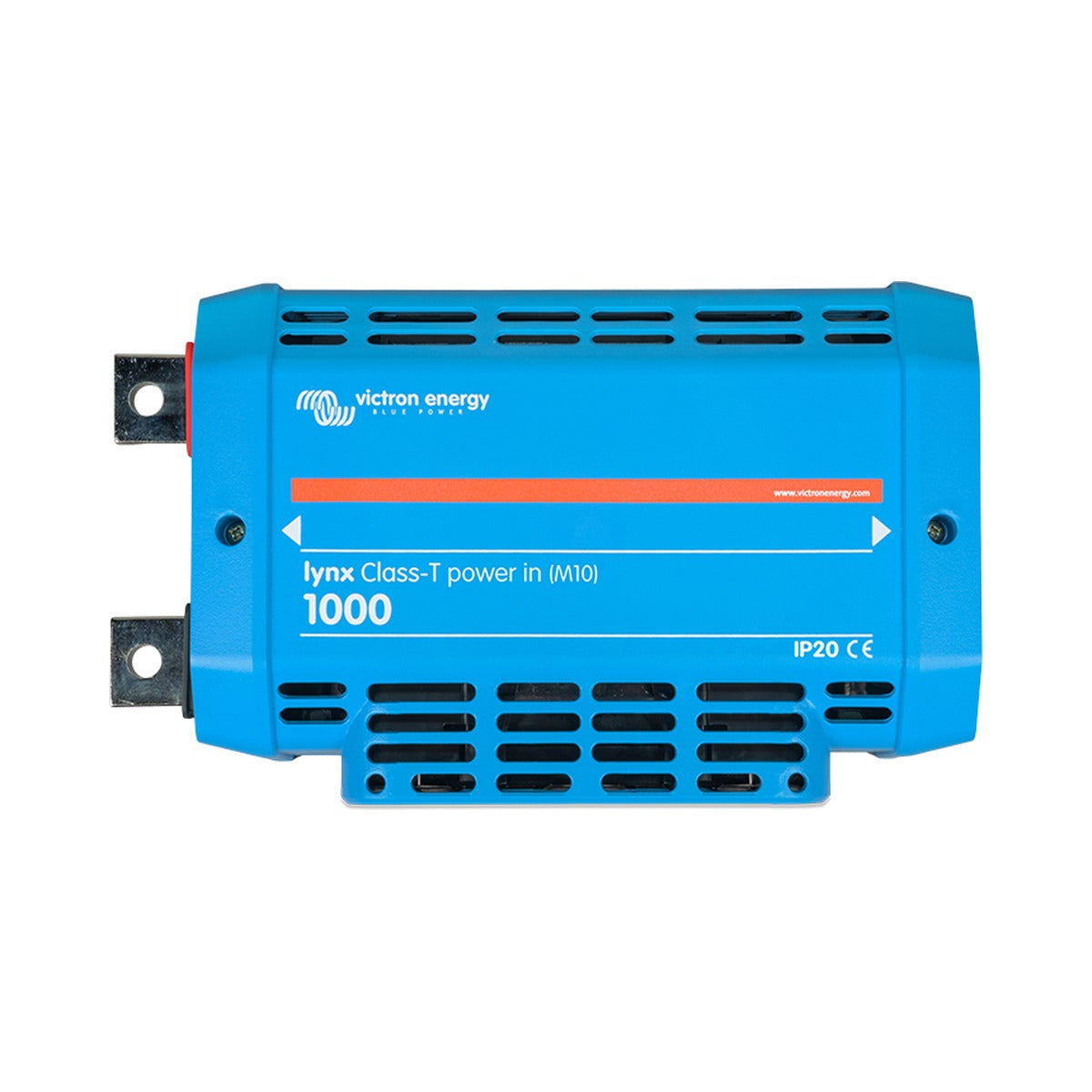

The Victron Lynx Class-T Power In brings high-interrupt-capacity Class-T fusing into the modular Lynx Distribution system. It provides a positive and negative tinned-copper busbar with two battery or DC-equipment connections, each protected by its own Class-T fuse holder, giving the fault protection demanded by lithium battery banks.
Class-T fuses offer a very high breaking capacity, which makes them the preferred choice for safeguarding large lithium systems against short-circuit currents. The module is rated for 1000 A continuous at 12, 24 or 48 V and accepts standard 3/8 inch stud Class-T fuses, which are purchased separately to suit each battery string.
Like the rest of the Lynx range it bolts directly to other Lynx modules to build a continuous busbar, and its ABS enclosure offers IP20 protection. The M10 busbar joints connect to neighbouring modules while the cable connections are M8.
PRODUCT DETAILS
- Positive and negative busbar with two Class-T fused battery connections
- Class-T fuses give very high breaking capacity, ideal for lithium battery banks
- 1000 A continuous current rating at 12, 24 or 48 V system voltage
- Accepts 3/8 inch stud Class-T fuses, purchased separately to suit each string
- Bolts to other Lynx modules to form a continuous DC busbar
- Tinned-copper busbars with M10 joints and M8 cable connections
- Rugged ABS enclosure with IP20 protection
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Continuous current | 1000 A continuous |
| System voltage | 12 / 24 / 48 V |
| Connection studs | M10 busbar joints; 3/8 in Class-T fuse studs |
| Protection rating | IP20 |
| Number of outputs | 2 Class-T fused strings |
Electrical
| Continuous current rating | 1000 A continuous |
| Voltage range | 9 - 60 Vdc |
| Supported system voltages | 12, 24 or 48 V |
| Fuse type | Class-T (sold separately) |
Connections
| Busbar stud size | M10 busbar joints |
| Number of fused outputs | 2 (Class-T) |
| Fuse holder size | 3/8 in stud |
| Busbar material | Tinned copper |
| Busbar dimensions (HxW) | 8 x 30 mm |
Mechanical
| Enclosure material | ABS |
| Dimensions (HxWxD) | 279 x 169 x 97 mm |
| Weight | 2.1 kg |
Environmental
| Operating temperature range | -40 to +60°C |
| Storage temperature range | -40 to +60°C |
| Humidity | Max 95% (non-condensing) |
| Protection category | IP20 |
