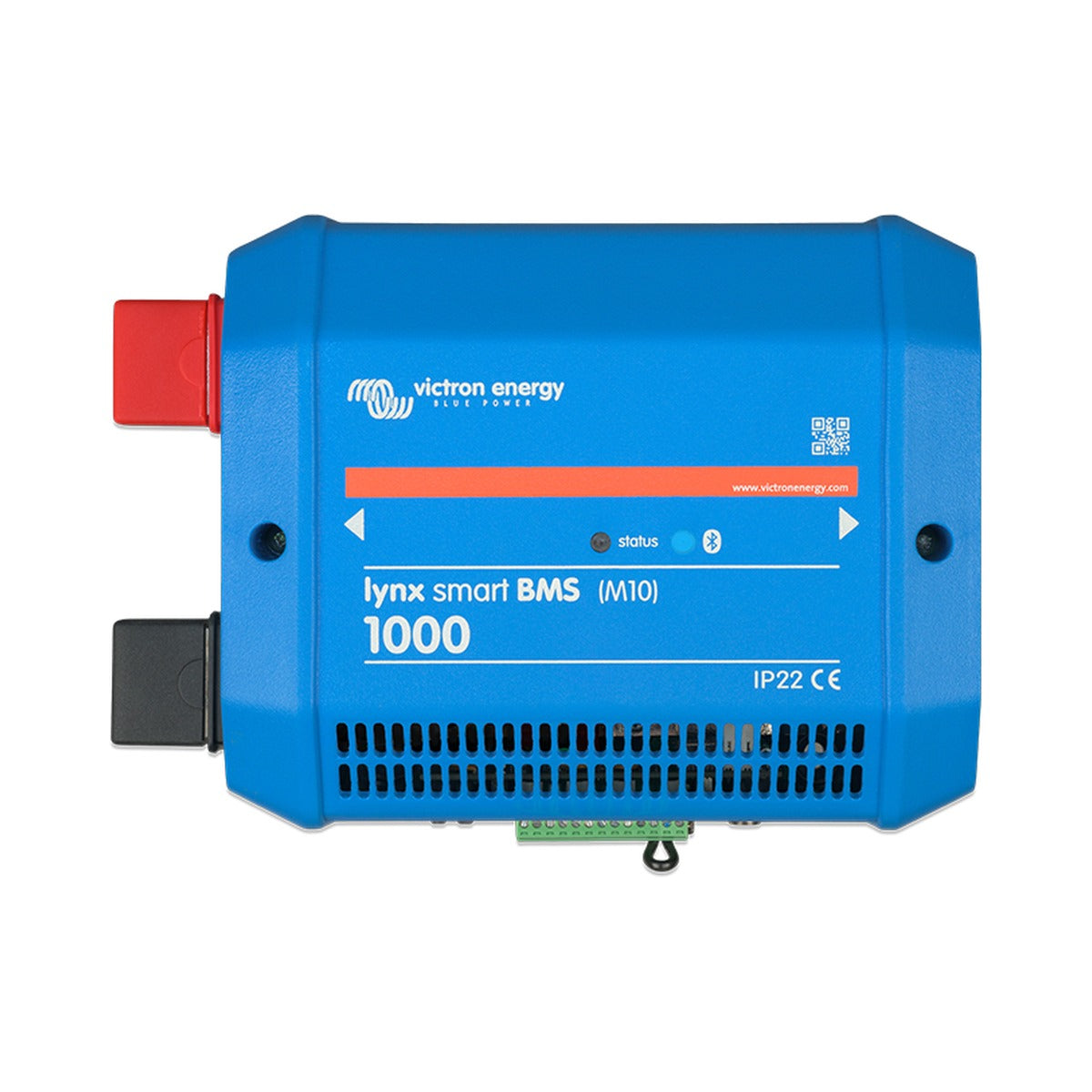

Victron Lynx Smart BMS 1000 (M10)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Victron Lynx Smart BMS 1000 is the battery management heart of a larger Victron lithium DC system. It manages a bank of Victron Lithium Battery Smart (LiFePO4) batteries by monitoring every cell, and it protects the bank through a built-in 1000 A safety contactor that disconnects loads or chargers if the primary controls fail. Up to 20 batteries can be combined for a 12 V, 24 V or 48 V system, and the higher current rating suits installations with powerful inverter/chargers and heavy DC loads.
Beyond protection, the BMS is a complete control and monitoring hub. A built-in battery monitor reports state of charge, voltage, current and historical data in real time, with Instant Readout over Bluetooth for diagnostics at a glance. Allowed-to-charge (ATC) and allowed-to-discharge (ATD) contacts switch external chargers and loads, while DVCC closed-loop control automatically manages compatible Victron inverter/chargers and solar chargers through a connected GX device.
The Lynx Smart BMS slots directly onto the Lynx Distributor busbar system, monitoring the fuses of up to four connected Lynx Distributors and feeding data to a GX device and the VRM portal. A pre-charge circuit handles capacitive loads such as inverters without external pre-charging, a programmable relay and AUX supply add flexibility, and VE.Can with NMEA 2000 output makes integration into a marine network simple. This version uses an M10 busbar connection and is not for use with the newer NG series batteries.
PRODUCT DETAILS
- Dedicated BMS for Victron Lithium Battery Smart (LiFePO4) banks, up to 20 batteries at 12, 24 or 48 V
- Built-in 1000 A safety contactor (1200 A peak for 5 minutes) as a secondary protection and main system switch
- Integrated battery monitor with state of charge, voltage, current and Instant Readout over Bluetooth
- Pre-charge circuit prevents high inrush currents from capacitive loads such as inverters
- ATC and ATD contacts plus DVCC closed-loop control of compatible Victron chargers and loads
- Programmable SPDT relay and 1.1 A AUX output for alarms, alternator control and backup power
- Monitors the fuses of up to four Lynx Distributors and slots onto the Lynx busbar system
- VE.Can and NMEA 2000 communication for easy GX device and marine network integration
No compatible transducers listed for this product.
Key specifications
| Continuous current | 1000 A |
| System voltage | 12 / 24 / 48 V |
| Connection studs | M10 |
| Communication | VE.Can, Bluetooth, NMEA 2000 |
| Protection rating | IP22 |
| Number of outputs | n/a (monitors up to 4 Lynx Distributors) |
Electrical
| Voltage range | 9 - 60 Vdc |
| Maximum input voltage | 75 Vdc |
| Supported system voltages | 12, 24 or 48 V |
| Reverse polarity protection | No |
| Power consumption | OFF 0.3 mA; standby approx. 0.6 W (50 mA at 12 V); ON approx. 4.2 W (350 mA at 12 V) |
| Main contactor continuous rating | 1000 A continuous |
| Main contactor peak rating | 1200 A for 5 minutes |
| Pre-charge circuit | Yes; minimum load resistance 10 ohm at 12 V, 20 ohm at 24 / 48 V |
| Pre-alarm | Yes |
| Potential-free alarm contact | Programmable SPDT relay, 2 A at 60 Vdc |
Connections
| Battery cable connection | Male and female circular 3-pole connector with M8 screw ring; up to 20 batteries in one system |
| Busbar material | Tinned copper |
| Busbar dimensions (HxW) | 8 x 30 mm |
Communication & control
| VE.Can | Yes, RJ45 |
| Bluetooth | Yes (VictronConnect) |
| NMEA 2000 | Yes (via VE.Can to NMEA 2000 micro-C male cable) |
| Allowed-to-charge (ATC) contact | 0.5 A at 60 Vdc, resettable fuse |
| Allowed-to-discharge (ATD) contact | 0.5 A at 60 Vdc, resettable fuse |
| Programmable relay | SPDT, 2 A at 60 Vdc |
| AUX output | 1.1 A continuous at system voltage, resettable fuse |
| Lynx Distributor fuse monitoring | Up to 4 modules, via RJ10 |
| Battery monitor (shunt) | Yes, integrated |
Mechanical
| Enclosure material | ABS |
| Dimensions (HxWxD) | 230 x 180 x 100 mm |
| Weight | 2.7 kg |
Environmental
| Operating temperature range | -40 to +60°C |
| Storage temperature range | -40 to +60°C |
| Humidity | Max 95% (non-condensing) |
| Protection category | IP22 |
Standards
| Safety | EN-IEC 63000:2018 |
| EMC | EN-IEC 61000-6-3 |
| Quality (QMS) | ISO 9001:2015 |
