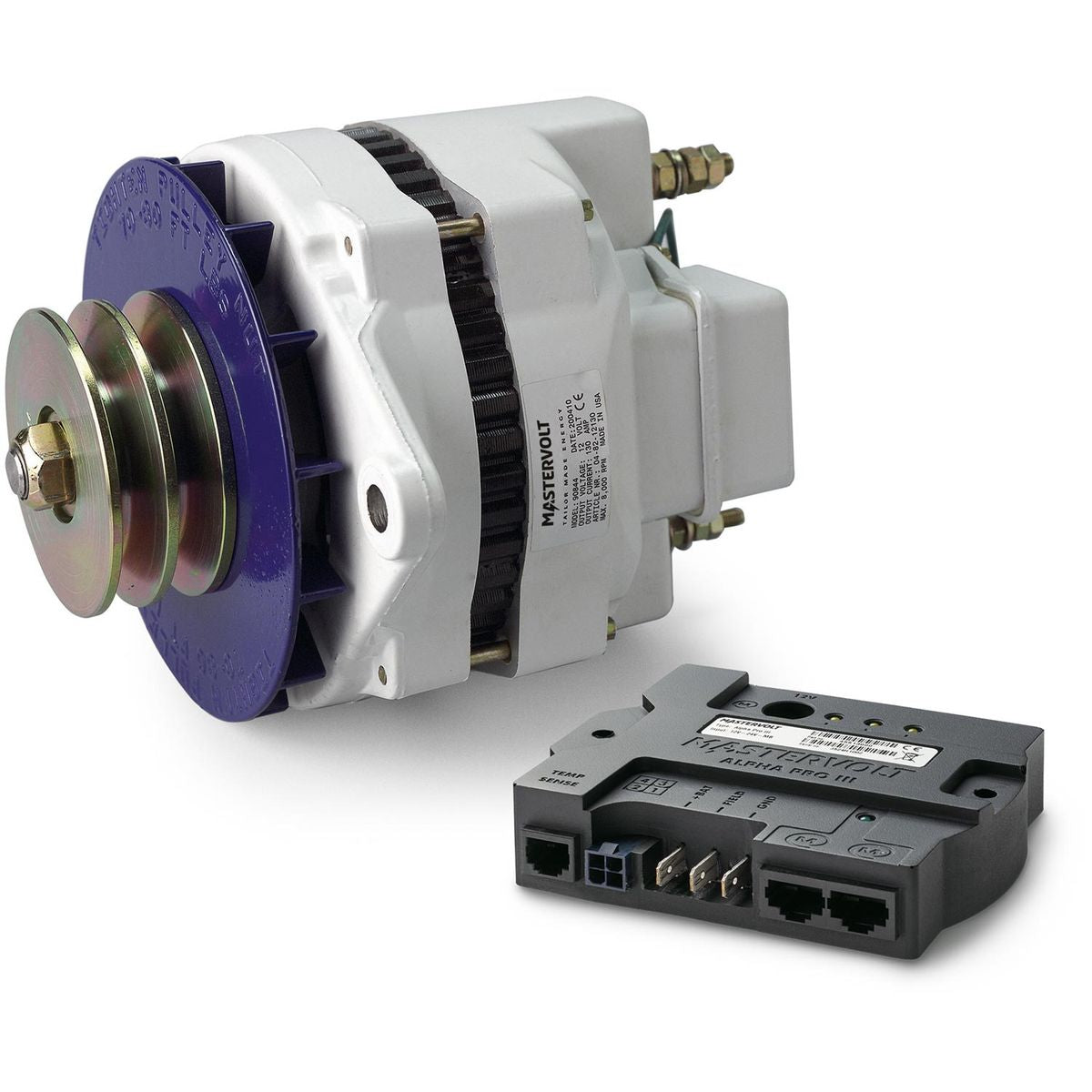

Mastervolt Alpha 12/130 III Alternator with 3-Stage Charge Regulator Mastervolt Alpha 12/130 III Alternator with 3-Stage Charge Regulator
Mastervolt Alpha 12/130 III Alternator with 3-Stage Charge Regulator

Mastervolt

Mastervolt Alpha 12/130 III Alternator with 3-Stage Charge Regulator

£1,805.62
Tax included. Shipping calculated at checkout.
48612130
12V/130A Mastervolt Alpha alternator for fast, complete charging of starter and service batteries and power supply for all consumers. Supplied with the Alpha Pro III charge regulator.
✓ Available for collection or delivery in ~1 day

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Mastervolt Alpha 12/130 III is a high-output 12 volt, 130 amp marine alternator engineered to charge starter and service batteries quickly and completely, while powering every consumer on board. It is supplied as standard with the Alpha Pro III charge regulator, turning the alternator into a fully temperature-controlled three-stage charger for optimal performance and longer-lasting batteries.

Unlike standard alternators that only deliver their rated capacity at high engine speed, the Alpha is purpose-built for powerful charging even at low rpm. Forced cooling from the pulley fan keeps output high in temperatures above 40 degrees, making it ideal for installation close to the engine. Combined with a Battery Mate or battery isolator, it can charge two or three separate battery banks at once.

PRODUCT DETAILS

  • 12 V output rated at 130 A total charge current
  • Supplied as standard with the Alpha Pro III three-step charge regulator
  • Fast, powerful charging even at low engine rpm
  • Forced fan cooling maintains output above 40 degrees C
  • Charges two or three battery banks via a Battery Mate or isolator
  • Isolated operation for safe, flexible installation
  • Multiple fixing points for customised alternator brackets
  • 2xA belt section with six o clock mounting
  • Alpha 12/130 III alternator (12 V / 130 A)
  • Alpha Pro III charge regulator
  • Battery temperature sensor with 6 m cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

Mastervolt Multigroove Pulley for Alpha 12/130, 24/75, 24/110 & 24/150

Mastervolt Multigroove Pulley for Alpha 12/130, 24/75, 24/110 & 24/150

No compatible products found.

General specifications

Charge regulationan Alpha Pro III regulator comes standard with all models
Total charge current130 A
Belt section2xA
Isolated operationyes
Rotational direction2
Mountingsix o clock
Dimensionssee Downloads for drawings
Weight10.1 kg (22.3 lb)

Technical specifications

Charge voltage Absorption14.25 V
Charge voltage Float13.25 V
Nominal diameter pulley89 mm (3.5 inch)

No videos available for this product.

Does the Alpha 12/130 III include a charge regulator?
Yes. Every Alpha 12/130 III is supplied as standard with the Alpha Pro III three-step charge regulator and a battery temperature sensor, so no separate regulator needs to be purchased.
Will it charge effectively at low engine speed?
Yes. Unlike standard alternators that only reach rated output at high rpm, the Alpha is designed for powerful charging even at low engine speeds.
Can it charge more than one battery bank?
Yes. Combined with a Mastervolt Battery Mate or a battery isolator, the Alpha alternator can charge two or three separate battery sets simultaneously.
How does it perform in high temperatures?
Forced cooling by the pulley fan keeps output high above 40 degrees C, which is important when the alternator is mounted close to the engine.
