Mastervolt BattMan Lite
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

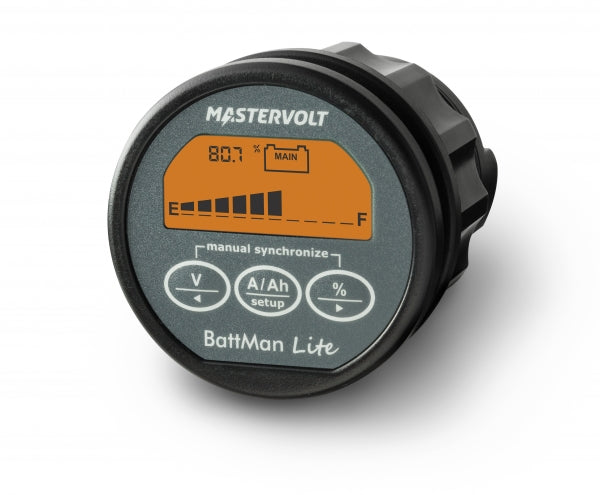

The Mastervolt BattMan Lite is an affordable battery monitor that gives you the critical information you need about the status of your battery bank under all circumstances, and warns you when the bank is empty. The large, splash-proof display (IP65) with power bar shows voltage, current, amp-hours and remaining battery capacity as a percentage, with a universal read-out that needs no language settings.
Designed for 12 and 24 V DC systems, the BattMan Lite monitors two outlets, fully for the service bank and by voltage for the starter battery. The supplied 500 A shunt measures current accurately, and a potential-free battery alarm contact lets you trigger external warnings. With its round 64 mm housing it fits neatly into a dashboard or panel.
PRODUCT DETAILS
- Splash-proof IP65 display with power bar
- Shows voltage, current, amp-hours and capacity as a percentage
- Monitors two battery outlets (service and starter)
- Universal read-out, no language settings needed
- Warns when the battery bank is empty
- Potential-free battery alarm contact
- Supplied 500 A / 50 mV shunt
- For 12 and 24 V DC systems
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Number of battery outlets | 2; service (fully), starter (voltage) |
| Display/read-out | Voltage, current, amp-hours, battery capacity in % |
| Languages on display | Universal |
Physical
| Built-in depth | 72.5 mm |
| Dimensions | Ø 64 mm, depth 79 mm |
| Dimensions shunt (h x w x d) | 87 x 45 x 35 mm |
| Weight | 0.15 kg |
Technical
| Max. Ah capacity | 9999 Ah |
| Supply voltage | 9-35 V |
| Voltage range | 0-35 V |
| Current consumption (backlight off) | 8 mA/12 V, 6 mA/24 V |
| Current consumption (backlight on) | 30 mA/12 V, 18 mA/24 V |
| Voltage resolution | 0.1 V |
| Voltage accuracy | ± 0.3% |
| Shunt specification | 500 A / 50 mV (service set) |
| Current measurement range | 0-500 A |
| Current accuracy | ± 0.4% |
| Battery alarm contact | Yes, potential free |
| Remaining time indication | No |
| Historical data | No |
| MasterBus compatible | No |
