Mastervolt BattMan Pro
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

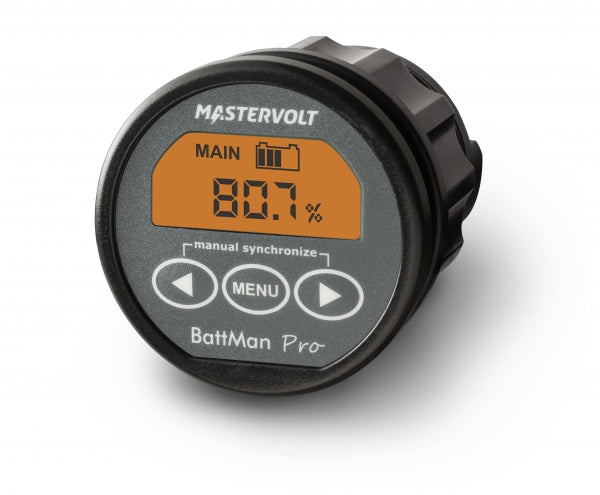

The Mastervolt BattMan Pro is an affordable battery monitor that keeps you fully informed about the status of your battery bank and warns you when it is empty. Building on the BattMan Lite, the Pro adds a remaining-time indication, telling you how long until the battery needs recharging, and stores special battery status events for later review.
The large, splash-proof display (IP65) with power bar shows voltage, current, amp-hours and remaining capacity as a percentage, with a universal read-out. Designed for 12 and 24 V DC systems, it monitors two outlets, fully for the service bank and by voltage for the starter battery, using the supplied 500 A shunt. A potential-free alarm contact allows external warnings, and the round 64 mm housing fits neatly into a panel.
PRODUCT DETAILS
- Splash-proof IP65 display with power bar
- Shows voltage, current, amp-hours, capacity % and time remaining
- Stores special battery status events (historical data)
- Monitors two battery outlets (service and starter)
- Universal read-out, no language settings needed
- Potential-free battery alarm contact
- Supplied 500 A / 50 mV shunt
- For 12 and 24 V DC systems
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Number of battery outlets | 2; service (fully), starter (voltage) |
| Display/read-out | Voltage, current, amp-hours, time remaining, battery capacity in %, special battery status events |
| Languages on display | Universal |
Physical
| Built-in depth | 72.5 mm |
| Dimensions | Ø 64 mm, depth 79 mm |
| Dimensions shunt (h x w x d) | 87 x 45 x 35 mm |
| Weight | 0.15 kg |
Technical
| Max. Ah capacity | 9999 Ah |
| Supply voltage | 9-35 V |
| Voltage range | 0-35 V |
| Current consumption (backlight off) | 8 mA/12 V, 6 mA/24 V |
| Current consumption (backlight on) | 30 mA/12 V, 18 mA/24 V |
| Voltage resolution | 0.01 V |
| Voltage accuracy | ± 0.3% |
| Shunt specification | 500 A / 50 mV (service set) |
| Current measurement range | 0-500 A |
| Current accuracy | ± 0.4% |
| Battery alarm contact | Yes, potential free |
| Remaining time indication | Yes |
| Historical data | Yes |
| MasterBus compatible | No |
