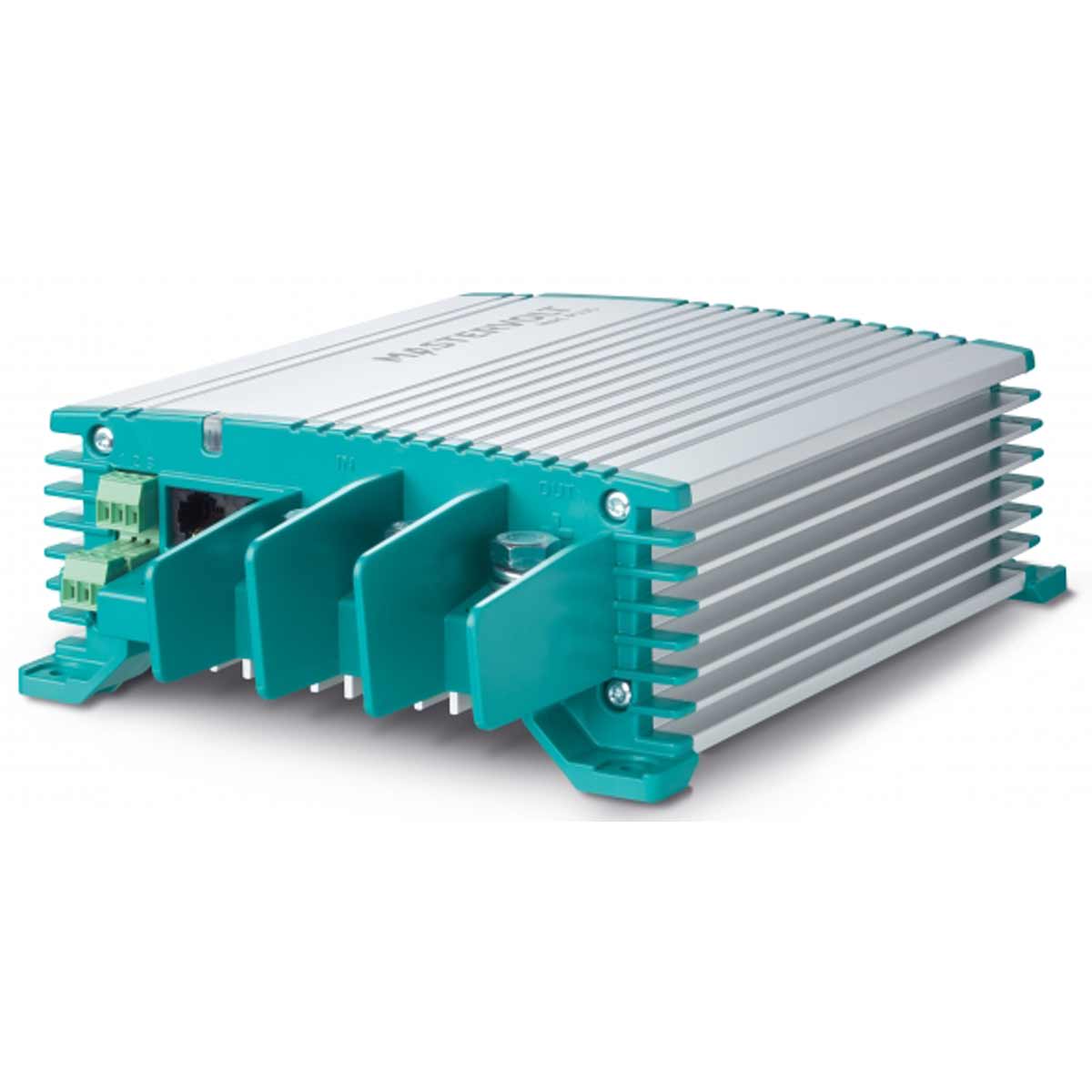

Mastervolt Mac Plus Voltage Converter + CZone (24V - 12V DC / 50A)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mac Plus 24/12-50 + CZone is a non-isolated DC-DC charger that converts a 24 V supply to charge a 12 V service battery at up to 50 A (750 W). Using the proven Mastervolt 3-step+ charge algorithm it delivers a quick, safe and consistent charge even to completely flat batteries, while engine-run detection ensures the starter battery is never drained. It also works seamlessly with Euro 5/6 smart alternators, supplying constant power even when the alternator is inactive.
A power-efficient, fanless aluminium housing keeps the unit silent and well protected against dust and water. It supports flooded, Gel, AGM and Lithium Ion (incl. LiFePO4) batteries, and up to ten units can be paralleled for charging capacities well over 100 A. A power supply mode provides stable output for sensitive loads.
Compatibility with CZone, NMEA 2000 and MasterBus gives superior monitoring and control, with configuration via MasterAdjust, the CZone tool or the on-board DIP switches.
PRODUCT DETAILS
- 24 V input to 12 V output, 50 A / 750 W maximum
- Proven Mastervolt 3-step+ charge algorithm charges flat batteries
- Engine run detection protects the starter battery
- Adjustable current limits to meet Euro 5/6 requirements
- Fanless aluminium housing for silent, robust operation (IP23)
- Suitable for flooded, Gel, AGM and Lithium Ion (LiFePO4) batteries
- CZone, NMEA 2000 and MasterBus compatible
- Parallel operation for charging capacities well over 100 A
No compatible transducers listed for this product.
General
| Communication protocol | MasterBus, CZone & NMEA 2000 |
| Nominal input voltage | 24 V |
| Input voltage range | 19-30 V |
| Max. input current | 30 A |
| Nominal output voltage | 12 V |
| Output voltage | 10-15 V |
| Max. output current | 50 A |
| Output charge current (3-step mode) | 50 A |
| Max. output power | 750 W |
| Nominal output power | 710 W |
| Output voltage stabilisation | 2 % at extremes of temperatures, load and input |
| Output voltage ripple (peak-peak) | max. 1 % |
| Galvanic isolation | No |
| Efficiency | > 95 % (at nom. input voltage, full load); peak 97 % |
| Parallel configuration | Yes |
| Status indicator | Yes, 3-colour LED |
| Alarm contact | Yes, through MasterBus |
| Engine run signal input | Yes (active high/active low) |
| DIP switches | Yes, for basic setup |
Technical
| Battery temperature sensor | Yes, included |
| Battery voltage sense | Yes |
| Charge characteristic | 3-step+ |
| Battery types | flooded, Gel, AGM, spiral, Lithium Ion, traction, user defined |
| No-load consumption | < 2 mA |
| DC consumption | < 5 mA |
| Connections | 3 x M8 terminal for cable diameters of 10-50 mm2; 6-pole screw connection (0.75-1.5 mm2) |
| Temperature range (ambient) | -25 °C to 60 °C; derating > 40 °C |
| Cooling | Natural cooling |
| Protection degree | IP23 |
| Protections | overload, over temperature, DC short circuit, reversed polarity (fuse) |
Physical
| Dimensions (h x w x d) | 255 x 165 x 66 mm |
| Weight | 2 kg |
| Compliance | CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected |
