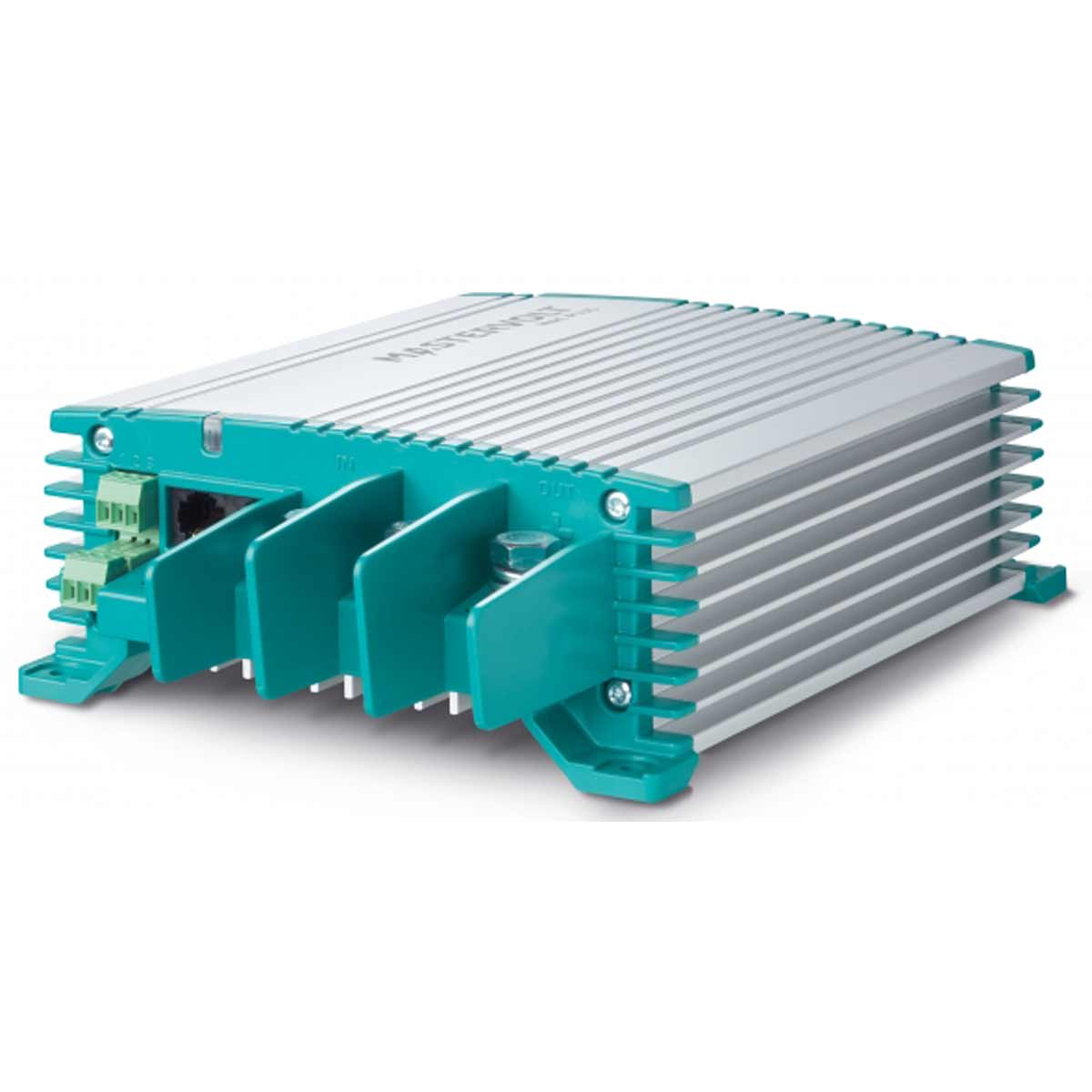

Mastervolt Mac Plus Voltage Converter + CZone (24V - 24V DC / 50A)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mac Plus 24/24-50 + CZone is the highest-power model in the range, a non-isolated DC-DC charger that maintains a 24 V service battery from a 24 V source at up to 50 A (1425 W). Using the proven Mastervolt 3-step+ charge algorithm it delivers a quick, safe and consistent charge even to completely flat batteries, while engine-run detection ensures the starter battery is never drained. It also works seamlessly with Euro 5/6 smart alternators, supplying constant power even when the alternator is inactive.
A power-efficient, fanless aluminium housing keeps the unit silent and well protected against dust and water. It supports Gel, AGM and Lithium Ion (incl. LiFePO4) batteries, and up to four units can be paralleled for charging capacities well over 100 A. Analog voltage sense ports compensate for voltage drop, and a power supply mode provides stable output for sensitive loads.
Compatibility with CZone, NMEA 2000 and MasterBus gives superior monitoring and control, with configuration via MasterAdjust, the CZone tool or the on-board DIP switches.
PRODUCT DETAILS
- 24 V input to 24 V output, 50 A / 1425 W maximum
- Proven Mastervolt 3-step+ charge algorithm charges flat batteries
- Engine run detection protects the starter battery
- Adjustable current limits to meet Euro 5/6 requirements
- Fanless aluminium housing for silent, robust operation (IP23)
- Suitable for Gel, AGM and Lithium Ion (LiFePO4) batteries
- CZone, NMEA 2000 and MasterBus compatible
- Parallel operation of up to four units; E-Mark/R10 certified
No compatible transducers listed for this product.
General
| Communication protocol | MasterBus, CZone & NMEA 2000 |
| Nominal input voltage | 24 V DC |
| Input voltage range | 16-32 V |
| Max. input current | 50 A |
| Nominal output voltage | 24 V |
| Output voltage | 20-30 V DC |
| Max. output current | 50 A |
| Max. output power | 1425 W |
| Output voltage stabilisation | 2 % at extremes of temps, load and input |
| Output voltage ripple (peak-peak) | max. 1 % |
| Galvanic isolation | No |
| Efficiency | > 95 % (at nom. input voltage, full load); 97 % peak |
| Parallel configuration | Yes, up to 4 |
| Status indicator | Yes, 3 colour double LED |
| Alarm contact | Yes, through MasterBus, CZone, DIP switch or remote switch |
| Engine run signal input | Yes (active high/active low) |
| DIP switches | Yes, for basic set up |
Technical
| Battery voltage sense | Yes |
| Battery types | Gel, AGM, Lithium Ion, user defined |
| Power consumption | < 5 mA, < 10 mA in CZone, < 1 mA in MasterBus |
| Temperature range (ambient) | -25 °C to 60 °C; derating > 40 °C |
| Cooling | Natural cooling |
| Protection degree | IP23 |
| Protections | Overload, over-temperature, DC short circuit, reversed polarity (fuse) |
Physical
| Dimensions (h x w x d) | 255 x 165 x 66 mm |
| Weight | 2 kg |
| Compliance | CE, E-Mark, SAE J1171, ISO 8846 ignition protected, ABYC & UKCA |
