Mastervolt SmartRemote (Retail)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

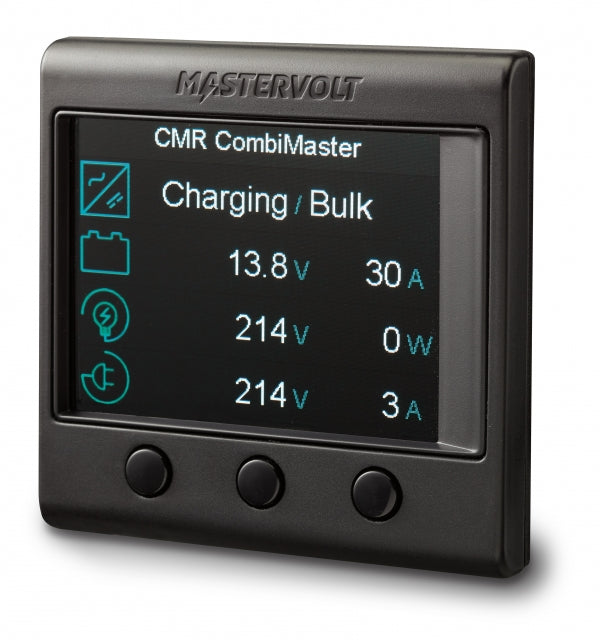

The Mastervolt SmartRemote completes any MasterBus system. This compact, full-colour single-device display is ideal as a remote panel in entry-level power systems, or as a local read-out in larger installations where the device's own display is hard to reach. It communicates directly with Mastervolt products, shows key parameters and lets you adjust simple settings, so checking your batteries, adjusting your shore fuse or controlling a charger/inverter could not be easier.
Installation is genuinely plug and play: simply click the network cable into a Mastervolt device and the SmartRemote powers up, with no configuration or separate power supply needed. It can be panel mounted or integrated into a Blue Sea Systems Custom 360 bezel, and supports ten languages. Supported products include Mac Plus, Mass Chargers, CombiMaster, ChargeMaster Plus, MLI Ultra and the MasterShunt 500.
PRODUCT DETAILS
- Full-colour 2.8 inch display for local device monitoring
- Shows key parameters and controls key device functions
- Plug & play: no configuration, no power supply needed
- MasterBus network compatible
- User-adjustable power saving mode
- Panel mount or Blue Sea Systems Custom 360 integration
- Supports 10 languages
- Bus powered, < 160 mW idle consumption
- SmartRemote display
- MasterBus cable (6 m)
- Mastervolt-to-CZone drop cable (1 m)
- Manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
Mastervault MasterShunt 500 CZone
Mastervolt ChargeMaster Plus 12/100-3
Mastervolt ChargeMaster Plus 12/75-3
Mastervolt ChargeMaster Plus 24/110-2
Mastervolt ChargeMaster Plus 24/40-3
Mastervolt ChargeMaster Plus 24/60-3
Mastervolt ChargeMaster Plus 24/80-2
Mastervolt CombiMaster 12/2000-60 (230 V)
Mastervolt CombiMaster 24/2000-40 (230 V)
Mastervolt CombiMaster 24/3000-60 (230 V)
Mastervolt CombiMaster Inverter/Charger (12V / 2000VA / 60A)
General
| Interfaces | MasterBus |
| Display/read-out | 2.8 inch, 320 x 240 pixels, high colour |
| Mounting | Panel mount (cutout: Ø 52 mm, 4 screws included); Blue Sea 360 panel mount (locking ring included) |
| Protection degree | IP20 |
| Delivered with | MasterBus cable (6 m), Mastervolt-CZone drop cable (1 m), manual |
Physical
| Dimensions (h x w x d) | 72 x 72 x 29.4 mm |
| Weight | 0.075 kg |
Technical
| Power consumption | Bus powered, < 160 mW (idle mode) |
