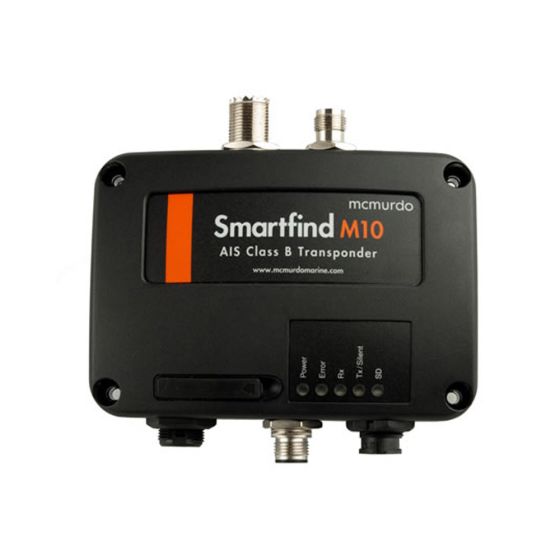

McMurdo SmartFind M10 AIS Class B Transponder McMurdo SmartFind M10 AIS Class B Transponder
McMurdo SmartFind M10 AIS Class B Transponder

McMurdo

McMurdo SmartFind M10 AIS Class B Transponder

£618.00
Tax included. Shipping calculated at checkout.
498-21200001A
Compact Class B AIS transponder with a built-in 50 channel GPS, 2W transmit power and dual-channel receiver. Interfaces over NMEA 2000, twin NMEA 0183 ports and USB, with an SD-card data logger and silent mode in a rugged 128 x 36 x 88mm housing.
✓ Available for collection or delivery in ~2 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The McMurdo SmartFind M10 is a compact Class B AIS transponder that brings the safety benefits of AIS to smaller non-SOLAS vessels where a full Class A system is unnecessary. Using its built-in 50 channel GPS receiver, it determines position, speed and course and automatically transmits this together with the vessel identity, with no user interaction required, while receiving and processing all AIS targets within a typical 20 mile range.

Designed for seamless integration with chart plotters, MFDs and PC or Mac navigation software, the M10 offers state-of-the-art NMEA 2000 duplex connectivity alongside two independent NMEA 0183 interfaces and USB. An SD-card slot acts as a data logger, capturing all messages to aid safety monitoring and incident investigation, and a silent mode lets the user temporarily stop transmitting identifying information when privacy or security is needed.

PRODUCT DETAILS

  • Class B AIS transponder for smaller non-SOLAS vessels
  • Built-in 50 channel GPS with antenna included
  • 2W transmit power, dual-channel AIS receiver
  • NMEA 2000 duplex plus two independent NMEA 0183 ports
  • USB 2.0 connectivity for PC and Mac
  • SD-card data logger for message capture
  • Silent mode to temporarily stop transmission
  • Compact rugged housing, 128 x 36 x 88mm
  • SmartFind M10 Class B AIS transponder
  • GPS antenna
  • Power and data cabling
  • Mounting fixings
  • User manual

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

AIS

ClassClass B
Transmit Power2 W (33 dBm +/- 1.5 dB)
Receivers2 channel
Receiver Sensitivity< -107 dBm at 20% PER
Channels161.975 MHz (CH-1), 162.025 MHz (CH-2)

GNSS

GPS50 channel, antenna included

Interfaces

NMEA 2000Duplex connector
NMEA 01832 input, 2 output (RS-422), default 38400 bps
USBUSB 2.0 supported

General

Data LoggerSD card slot
VHF Antenna ConnectorFemale Type M (PL-259)

Electrical

Supply Voltage12 / 24V DC
Power Consumption< 4 W at 12V

Physical

Size (W x H x D)128 x 36 x 88 mm
Weight250 g
WaterproofIPX2
Operating Temperature-15 to +55 degrees C

No videos available for this product.

No downloads available for this product.

What range does the M10 receive AIS targets over?
The SmartFind M10 receives and processes all AIS targets within a typical range of 20 miles of the vessel.
What is the SD card slot used for?
The SD card slot acts as a data logger, capturing all AIS messages to aid system and safety monitoring, including incident investigation. A 4GB card stores approximately 30 days of data.
Does the M10 have a built-in GPS?
Yes. The M10 has a built-in 50 channel GPS with the antenna included, which it uses to determine and automatically transmit the vessel position, speed and course.
