B&G
B&G, Lowrance, Simrad N2K, Micro-C, 4-Way Block
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

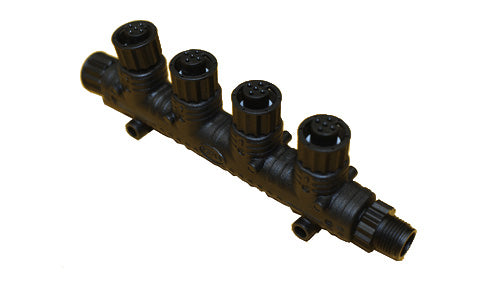

The Micro-C 4-way block is a low-loss joiner that lets four NMEA 2000 devices connect at a single point on the backbone, in place of four separate T-connectors ganged together. It is a tidy solution behind a helm or at an instrument pod where several sensors and displays land in the same place, and its low-loss construction keeps the voltage drop across the block small. It supersedes the earlier 000-10996-001 4-way block.
PRODUCT DETAILS
- Connects four NMEA 2000 Micro-C devices at one point
- Low-loss construction to minimise voltage drop
- 22 AWG
- Replaces the earlier 000-10996-001 4-way block
- Works on B&G, Simrad and Lowrance networks
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
General
| Type | Low-loss 4-way joiner block |
| Network | NMEA 2000 (Micro-C) |
| Device ports | 4 |
| Wire gauge | 22 AWG |
| Supersedes | 000-10996-001 |
