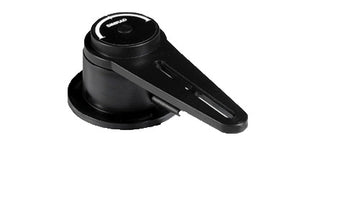

B&G, Lowrance, Simrad RF25N, Rudder Feedback Unit NMEA2000 5m Micro-C cable
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
RF25N, Rudder Feedback Unit: With transmission link and 5 m (16.5 ft) NMEA2000 Micro-C cable. Rudder feedback units are sensors that connect to your rudder via a mechanical linkage and continuously report actual rudder position to your autopilot computer – allowing the Simrad Continuum steering algorithm to make the best-informed steering decisions possible. These sensors are typically used on boats with inboard engines, on larger vessels, and in special applications where Virtual Rudder Feedback may not be suitable. The RF25N included in this pack connects directly to your boat’s NMEA 2000® network, simplifying the cabling required for installation.
PRODUCT DETAILS
- RF25 / RF25N rudder feedback unit with NMEA 2000 output
- Supplied with 5 m (16') Micro-C cable and connector
- Rudder angle +/-120 degrees
- Stainless transmitter link 345 mm with 2 ball joints
- Mount horizontal, vertical or upside down
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Specifications
| Weight | 0,5 kg (1,1 lbs) |
| Material | Arnite T06 200 PBT |
| Environmental Protection | IP56 |
| Safe distance to compass | 1,0 m (3,1 ft.) |
| Temperature range (Operation) | -25 to +55 C (-13 to +130 F) |
| Temperature range (Storage) | -30 to +70 C (-22 to +158 F) |
| Mounting | Horizontal, vertical, or upside down |
| Supply and interface | 8-16V via Micro-C |
| Power consumption | 0,4W |
| Network load factor (NL) | 1 |
| Micro-C ports (input/output) | 1 |
| Cable supplied | 5 m (16') Micro-C cable with connector |
| Rudder angle | +/-120 degrees |
| Output signal | NMEA2000 PGN127245 |
| Accuracy | +/-0.25 deg within +/-5 deg, otherwise +/-0.5 deg |
| Repeatability | +/-0.1 deg |
| Transmitter link | Stainless 345 mm (13.6 in) with 2 ball joints |
