Navico
NEP-3 Ethernet 5-Port Switch
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

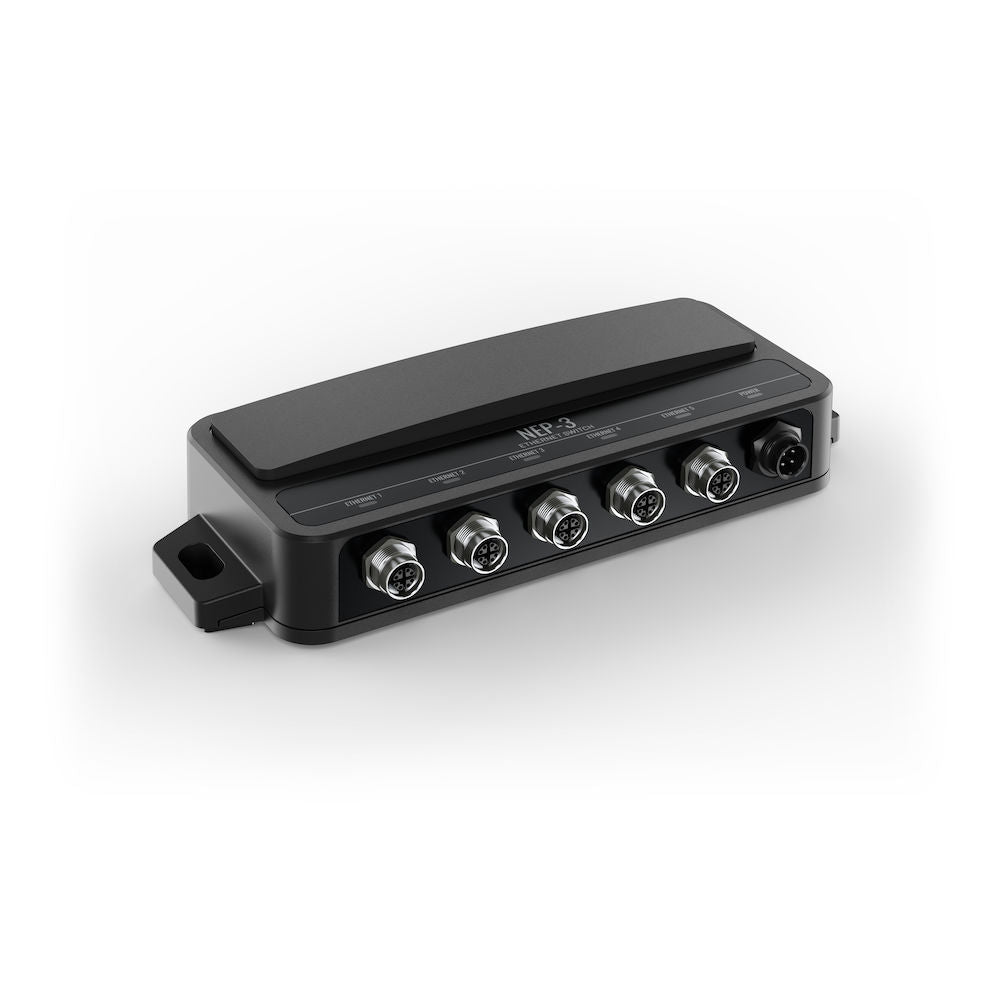

The NEP-3 is a compact marine-grade Ethernet switch that expands your boat network with five gigabit ports, letting you connect multiple displays, radar, sonar modules and other Ethernet devices on a single backbone. The low-profile housing is around half the size of earlier switches, so it tucks neatly behind a dash or inside a console.
Each port uses a standard X-coded M12 connector for a secure, vibration-resistant link, and the switch runs straight from 12 V or 24 V with no separate power adapter. Rated IPX6 and IPX7, it is built to shrug off spray and the occasional submersion in real marine installations across Simrad, Lowrance and B&G systems.
PRODUCT DETAILS
- Five gigabit Ethernet ports on X-coded M12 connectors
- Powered directly from 12 V or 24 V, no adapter needed
- Compact low-profile housing for tight installations
- IPX6 and IPX7 waterproof rating
- Compatible with Simrad, Lowrance and B&G Ethernet devices
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Supply voltage | 12 to 24 V DC (10.4 to 31.2 V DC) |
| Recommended fuse | 1 A |
Connectivity
| Ports | 5 x gigabit Ethernet |
| Connector | X-coded M12 |
Environment
| Waterproof rating | IPX6 and IPX7 |
| Operating temperature | -15 to 55 C |
