Garmin

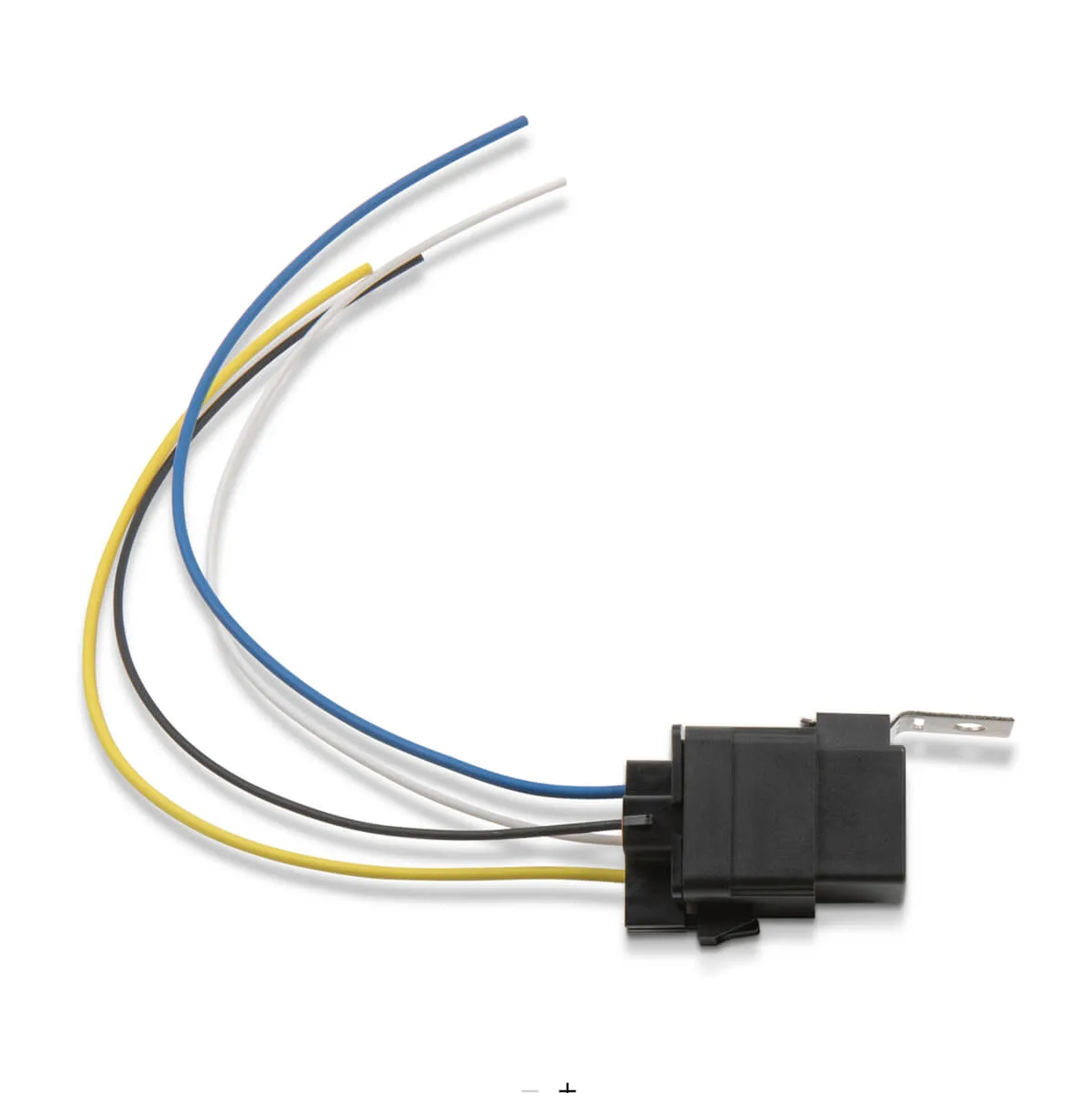

OnDeck™ Relay Switch (24 Vdc)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The OnDeck Relay Switch (24 V DC) extends the remote-control capability of the Garmin OnDeck vessel monitoring system on 24 V vessels. Wired to the OnDeck Hub, it allows an item such as a cabin light, fan or accessory to be switched on or off from anywhere using the Garmin ActiveCaptain app, so you can prepare or check on the boat without being aboard.
This 24 V relay is one of the switch types that can be added to an OnDeck Hub, with up to five relay switches supported per hub. The relay coil is driven from the hub through a 1 A fused control wire, while the switched contacts handle the load up to the rated current. To protect the relay and connected equipment, it must be installed in a dry location. Switches are set up and operated through the ActiveCaptain app.
PRODUCT DETAILS
- External relay switch for the Garmin OnDeck vessel monitoring system
- Switch an onboard item on or off remotely via the ActiveCaptain app
- For 24 V systems: coil control voltage 15.6 to 31.2 V DC
- Switched contacts handle 0.1 A minimum up to 9 A at 20 to 32 V DC
- Up to five relay switches per OnDeck Hub
- 1 A fuse on the relay control wire
- Must be installed in a dry location
- OnDeck Relay Switch (24 V DC)
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Module/Switching
| Role | External relay switch for the Garmin OnDeck system; turns an item such as a light on or off remotely from the ActiveCaptain app |
| System | Works with the OnDeck Hub (GTB 10); up to five switches can be added to a hub |
Electrical
| Control voltage (coil) | 15.6 to 31.2 V DC |
| Load power min. (contacts) | 0.1 A |
| Load power max. (contacts) | Up to 9 A at 20 to 32 V DC |
| Control wire fuse | 1 A on the relay control wire |
Environmental
| Operating temperature | -15 C to +85 C |
| Storage temperature | -40 C to +155 C |
| Installation | Must be installed in a dry location |
General
| Control app | Garmin ActiveCaptain |
