Panoptix™ PS70, With Transducer and Fairing Block
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Panoptix PS70 is a stainless-steel thru-hull transducer powered by Garmin RapidReturn sonar, bringing live sonar to deep-sea fishing with views up to 305 m (1,000 ft) below the boat. Four modes cover every situation: LiveVu Down for real-time targets, Traditional sonar, Triple-Beam for a port, straight-down and starboard split, and RealVu 3D Historical for a scanned three-dimensional view. A wide 120-degree port-to-starboard by 8-degree bow-to-stern beam covers large areas of water, while 800 W of power, image stabilisation and a fast refresh rate keep the picture clear at depth. This version is supplied with a fairing block and mounting hardware so it can be fitted on hulls with deadrise angles from 0 to 20 degrees. It connects through an integrated Garmin BlueNet cable to a Garmin BlueNet chartplotter or BlueNet 20 switch, with legacy Garmin Marine Network chartplotters supported via an adapter cable.
PRODUCT DETAILS
- Stainless-steel thru-hull live sonar transducer powered by Garmin RapidReturn, for deep-sea fishing
- Live sonar views up to 305 m (1,000 ft) below the boat
- Four sonar modes: LiveVu Down, Traditional, Triple-Beam and RealVu 3D Historical
- Wide 120-degree (port to starboard) by 8-degree (bow to stern) beam covers large areas of water
- 800 W power output with image stabilisation and a fast refresh rate
- Supplied with a fairing block and mounting hardware for deadrise angles of 0 to 20 degrees
- Connects via an integrated Garmin BlueNet cable to a Garmin BlueNet chartplotter (or Marine Network via adapter)

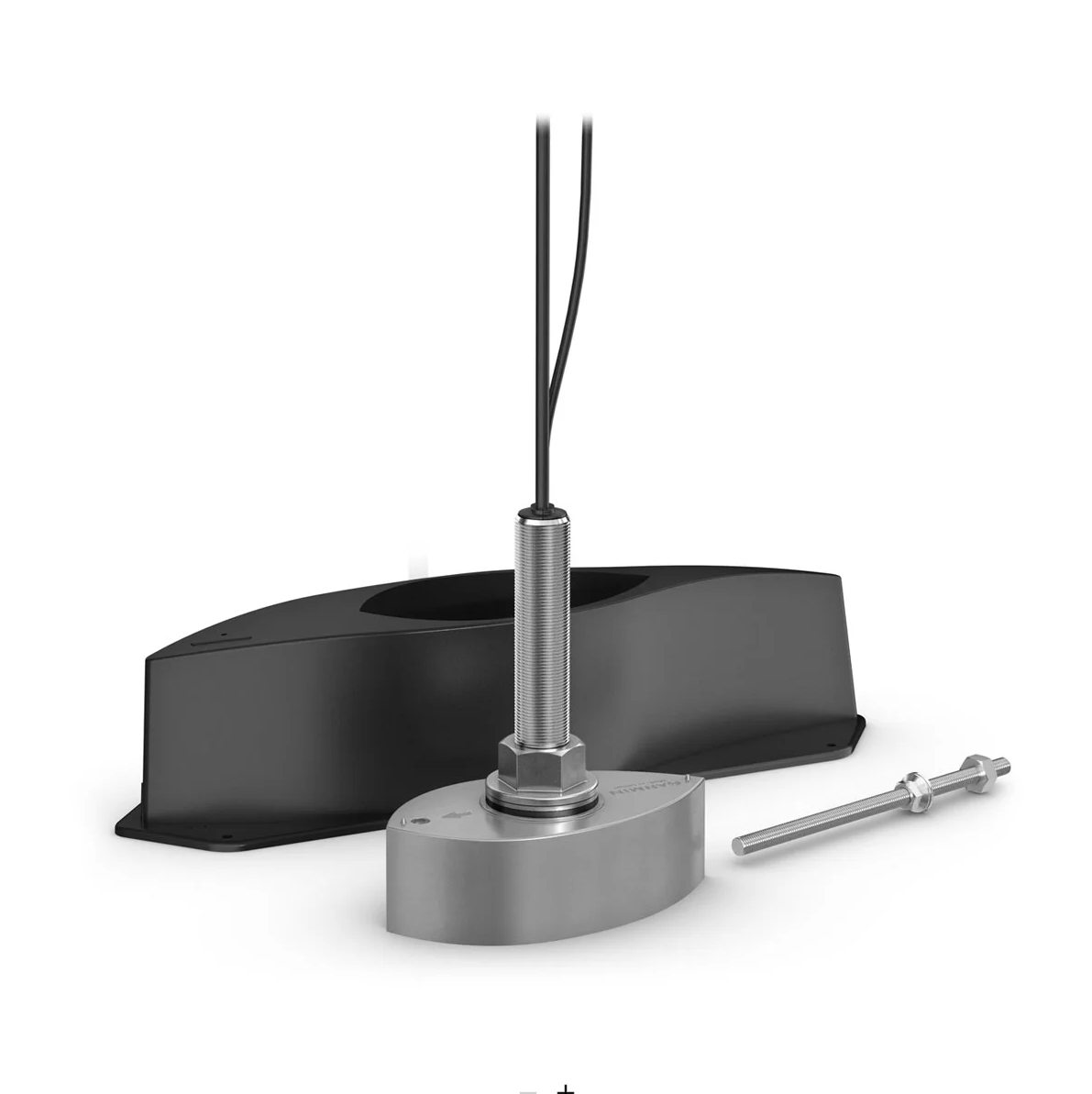

- Panoptix PS70-TH stainless-steel thru-hull transducer with integrated Garmin BlueNet cable
- Fairing block
- Anti-rotation bolt and cap
- Hull nut, washers and mounting hardware
- Isolation bushings (for metal hulls)
- Anti-seize compound
- 7.5 A fuse
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Configuration | PS70 stainless-steel thru-hull transducer supplied with a fairing block and mounting hardware for deadrise angles of 0 to 20 degrees |
| Operating temperature | 0 to 40°C (32 to 104°F) |
| Storage temperature | -40 to 70°C (-40 to 158°F) |
Sonar
| Sonar type | Live sonar powered by Garmin RapidReturn (multi-beam), with image stabilisation; minimum 10 frames per second refresh |
| Sonar modes | LiveVu Down, Traditional sonar, Triple-Beam (port / straight down / starboard) and RealVu 3D Historical |
| Frequency | 200 kHz (190 to 210 kHz) |
| Maximum depth | Up to 305 m (1,000 ft) |
| Beam coverage | 120 degrees (port to starboard) by 8 degrees (bow to stern) |
| Power output | 800 W |
Connectivity
| Network connection | Integrated Garmin BlueNet cable connects to a Garmin BlueNet chartplotter or Garmin BlueNet 20 switch; legacy Garmin Marine Network chartplotters supported via the Garmin Marine Network adapter cable (010-12531-01). No separate sonar black box required |
Mounting
| Mounting type | Stainless-steel thru-hull; flush/pocket mount or with the included fairing block for deadrise angles up to 20 degrees; suits cored fibreglass, non-cored fibreglass and metal hulls (isolation bushings for metal hulls); anti-rotation bolt required with the fairing block |
Physical
| Transducer dimensions (W x H) | 114 x 216 mm (4.5 x 8.5 in) |
| Fairing block dimensions | 133 x 568 mm (5.25 x 22.35 in) |
Electrical
| Input voltage | 10 to 35 Vdc |
| Fuse | 7.5 A (included) |
