Navico
Point-1 GPS Antenna
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

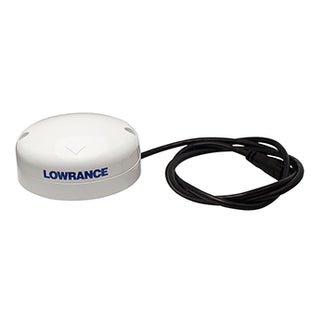

The Navico Point-1 is a compact GPS and heading antenna that gives compatible Simrad, Lowrance and B&G displays a fast, accurate position fix along with a heading reference. Tracking GPS and GLONASS with SBAS corrections, it updates ten times per second for smooth chart movement and dependable course-over-ground, even at low boat speeds.
A solid-state electronic compass is built in, delivering 10 Hz heading for chart stabilisation and radar overlay without the need for a separate sensor. The sealed, low-profile housing connects to the network with a single NMEA 2000 Micro-C cable and can be pole or surface mounted anywhere with a clear view of the sky.
PRODUCT DETAILS
- 10 Hz GPS and GLONASS positioning with SBAS (WAAS, EGNOS, MSAS) support
- Integrated electronic compass providing 10 Hz heading
- Heading reference for radar overlay and chart stabilisation
- Single NMEA 2000 Micro-C connection for data and power
- Compact, fully sealed housing for pole or surface mounting
- Works with Simrad, Lowrance and B&G NMEA 2000 displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Electrical
| Supply voltage | 9 to 18 V DC |
Connectivity
| Network | NMEA 2000 (Micro-C) |
Performance
| Satellite systems | GPS, GLONASS, SBAS (WAAS, EGNOS, MSAS) |
| Position update rate | 10 Hz |
| Heading update rate | 10 Hz |
| Heading accuracy | 3 degrees |
