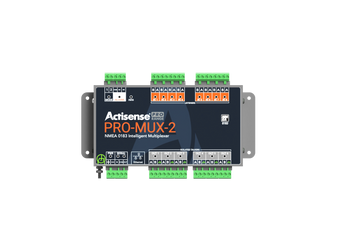

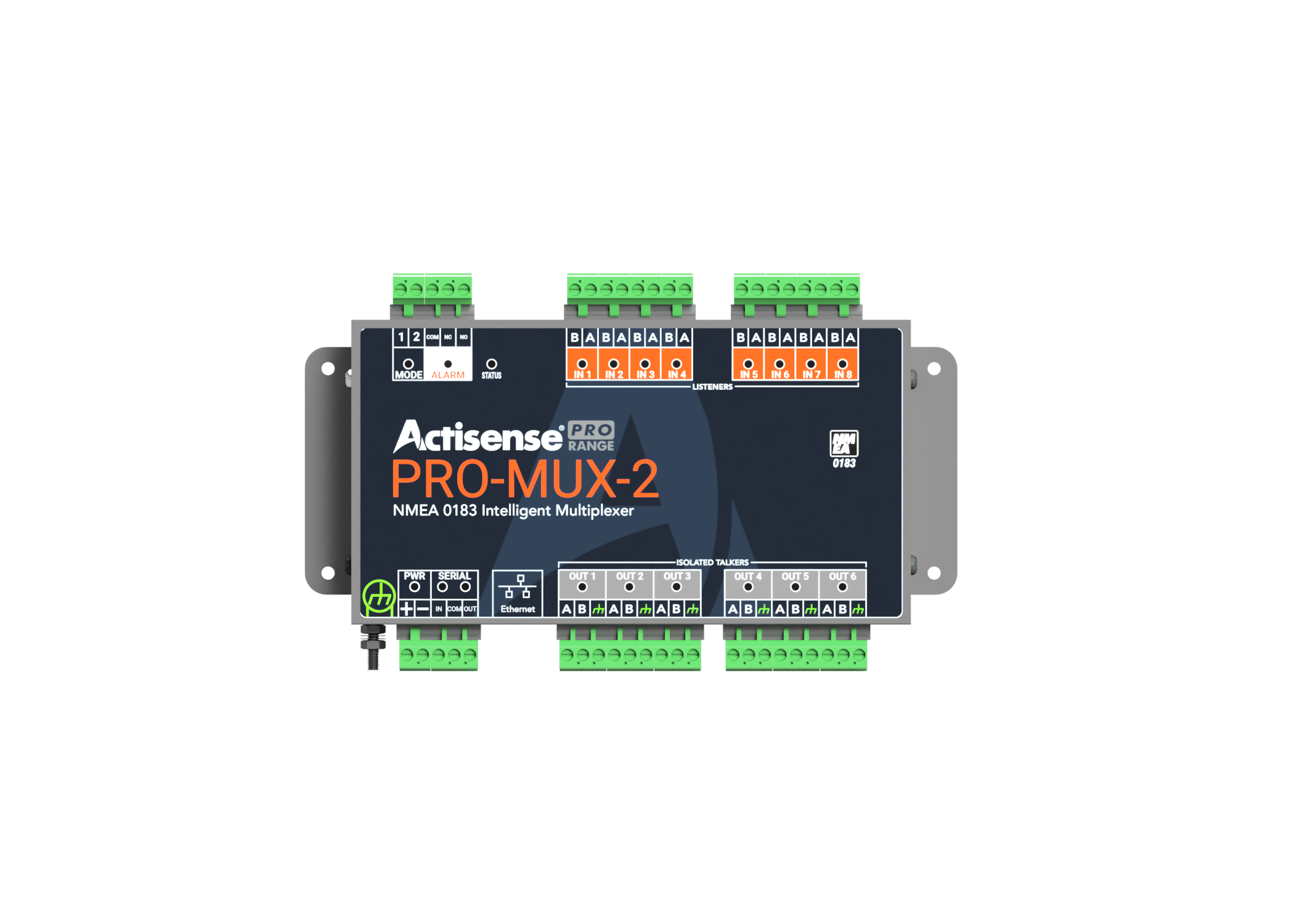

The Actisense PRO-MUX-2 is an intelligent, RINA type approved NMEA 0183 multiplexer that cures the interconnectivity headaches common in busy marine networks. Its eight NMEA 0183 inputs can be routed to any of the six NMEA 0183 outputs, providing a highly customisable network, while industry-leading isolation on every input and output keeps connected devices safe from the hazardous ground loops that are the number one cause of NMEA 0183 product failure.
Eight OPTO-isolated inputs and six ISO-Drive isolated outputs combine data intelligently, with advanced features including data rate conversion, auto-switching and sentence-based routing and blocking. A bi-directional serial port and an Ethernet port allow simple configuration and diagnostics: the web-based tool is reached through any browser over Ethernet, so there are no operating system compatibility issues, and a direct PC connection needs no crossover cable.
Built into a rugged 316 stainless steel housing with two-part pluggable connectors, an alarm relay and diagnostic LEDs, the PRO-MUX-2 mounts to a bulkhead or, with optional brackets, to a DIN rail for secure installation in high-vibration environments.
PRODUCT DETAILS
- Eight OPTO-isolated NMEA 0183 inputs routable to any of six ISO-Drive outputs
- Advanced data filtering, routing, data rate conversion and auto-switching
- Bi-directional isolated serial port plus NMEA 0183 over Ethernet
- Web-based configuration tool works in any browser with no OS restrictions
- Automatic baud rate matching on inputs and free firmware updates
- Rugged 316 stainless steel housing with two-part pluggable screw terminals
- Alarm output relay and diagnostic LEDs for power, data and alarm status
- RINA type approved with 1000V isolation on I/O and serial ports
- PRO-MUX-2 NMEA 0183 multiplexer
- Two-part pluggable screw terminal connectors
- Mounting screws
- Quick start guide
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Power
| Input Supply Voltage | 10 to 35 V DC |
| Input Supply Current | 220mA max @ 12V DC (all outputs at full drive into 100 ohm loads) |
| Input Protection | Continuous reverse polarity, transient overvoltage and ESD protection |
NMEA 0183 Ports
| Listener / Input Ports | 8 isolated NMEA 0183 Listeners |
| Talker / Output Ports | 6 isolated NMEA 0183 Talkers |
| Compatibility | Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / Baud Rate | 4800 to 38400 bps |
Serial Port
| Compatibility | RS422 & RS232 compatible. RS485 Listener compatible |
| Speed / Baud Rate | 4800 to 115200 bps |
Ethernet Port
| Host Interface | 10/100BaseT, automatic polarity detection |
| Connector | RJ45 |
Isolation
| NMEA 0183 Listener | OPTO-Isolated, Hi-Pot tested to 1000V |
| NMEA 0183 Talker & Serial | Uses ISO-Drive, Hi-Pot tested to 1000V |
| Ethernet Port | 2kV for 60s |
Alarm Output
| Contacts | Common, Normally Open and Normally Closed |
| Contact Ratings | 35VAC / 50VDC |
Mechanical
| Housing Material | 316 Stainless Steel |
| Dimensions | 210mm (W) x 128mm (H) x 27mm (D) |
| Weight | 540g |
| Mounting | Bulkhead mount or DIN rail mount (DIN-KIT-1) |
Environmental & Approvals
| EMC | IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7 |
| Compass Safe Distance | 175mm |
| Type Approval | RINA |
| Operating Temperature | -25 to +70 C |
| Storage Temperature | -40 to +85 C |
| Relative Humidity | 95% @ 55 C |
| Environmental Protection | IP40 |
| Guarantee | 5 Years |
